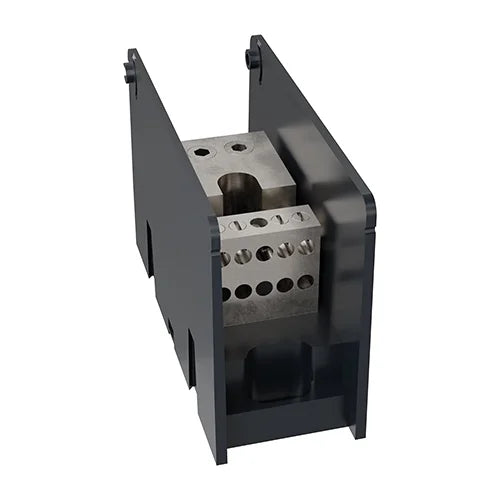

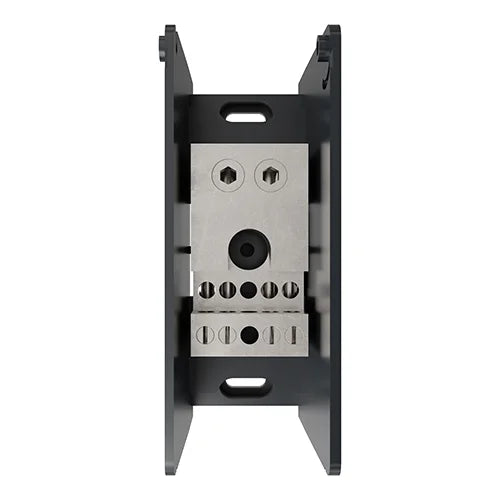

Mersen MPDB67531 Mpdb Series Ul 1953 Open-Style Power Distribution Blocks

Brand: MERSEN
SKU: MPDB67531
Availability: Out Of Stock
$213.46
$213.46
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Mersen MPDB67531 power distribution blocks provide a safe and easy method of splicing cables and splitting primary power into secondary circuits. These blocks meet requirements for fixed junction tap-off points and are UL and CSA approved. They meet spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code.

  • Safe and easy method of splicing cables
  • Splits primary power into secondary circuits
  • Meets spacing requirements for feeder and branch circuits

Product Highlights

Mersen power distribution blocks offer a reliable solution for power distribution needs, with UL and CSA approval for safety and compliance.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: MPDB67531
  • Country of Origin: United States
Technical Specifications
Item number
MPDB67531
Description
Open-Style PDB UL 1953 1000V 270A Tin-plated Aluminum - 350A 1-Pole 2 - 10 openings; 2/0-#14 --- #6-#14 Box to Box
EAN/UPC Code
782001453947
Rated voltage AC UL
1000 V
Rated voltage DC UL
1000 V
Frequency (Hz)
50/60 Hz
Ampere Rating (AL)
270 A
Ampere Rating (CU)
350 A
ROHS Compliant
Yes
AC or DC
AC/DC
Short Circuit Rating (Class CC)
100 kA with 30A Fuse
Short Circuit Rating (Class G)
100 kA with 60A Fuse
Short Circuit Rating (Class J)
100 kA with 400A Fuse
Short Circuit Rating (Class L)
100 kA with 400A Fuse
Short Circuit Rating (Class RK1)
100 kA with 200A Fuse
Short Circuit Rating (Class RK5)
100 kA with 100A Fuse
Short Circuit Rating (Standalone)
10 kA
Short Circuit Rating (Class T)
100 kA with 400A Fuse
Number of Poles
1
Connector Material
Tin-plated Aluminum
Number of Openings per Pole (Primary)
2
Number of Openings per Pole (Secondary)
10
Connector Type (Primary)
Box
Connector Type (Secondary)
Box
Hex/Screw Size & Type (Primary)
7/16-20 x .55
Hex/Screw Size & Type (Secondary)
1/4-28 x .38
Hole Diameter (Primary)
0.44 in
Hole Diameter (Secondary)
0.21 in
Torque Rating (Primary)
2/0-#6 120; #8-#14 50
Torque Rating (Secondary)
#6 28; #8 25; #10-#14 20
Wire Range (Primary)
2/0-#14
Wire Range (Secondary)
#6-#14
Installation Mounting
Direct Screw Mount
Product Width
1.85 in
Product Length
3.08 in
Product Height
3.25 in
Product group
Power Distribution Blocks
Body/Insulating Material
Glass Filled Polycarbonate
UNSPSC Code
39120000
Brand
Mersen
Current Rating
350 A
Manufacturer Part Number
MPDB67531
Series
MPDB Series
Voltage Rating
1000 V
Wire Size
14 to 2/0
Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications
Type
Intermediate Open Style
Amperage Rating
350
MPN
MPDB67531
UPC
78200145394
Manufacturer
Mersen
Category
Business & Industrial>Electrical Equipment & Supplies>Wire, Cable & Conduit>Wire Connectors & Terminal Blocks>Terminal Blocks
Fuse UL Class
UL1953 Open-style
Standards
CSA Class 6228-01, UL 1953
Amp Range
270 to 350A
Maximum Voltage
1,000 V AC/DC
Housing Material
Glass-Filled Polycarbonate
Maximum Operating Temperature
80 Degrees C
