Mersen MPDB67522 Mpdb Series Ul 1953 Open-Style Power Distribution Blocks

Product Description

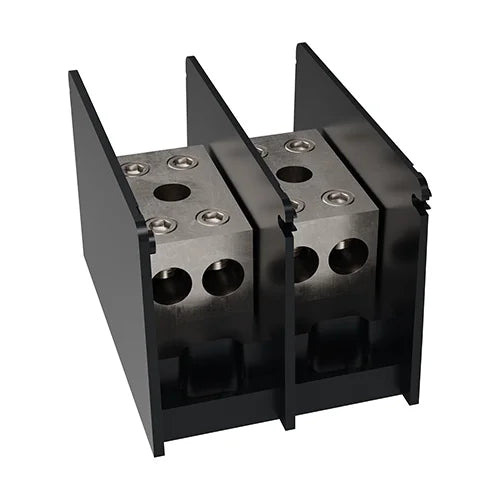

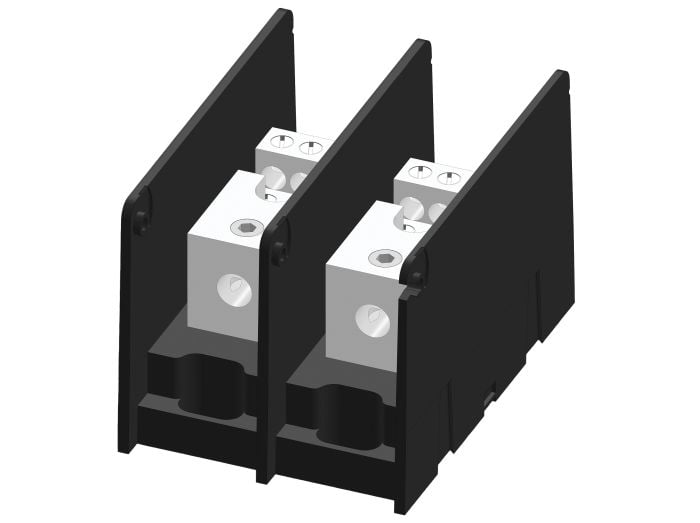

The MERSEN MPDB67522 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points and is UL and CSA approved. This open-style PDB is rated to 1000V and 460A, with tin-plated aluminum connectors.

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap-off points
• UL and CSA approved

Product Highlights

The MPDB67522 power distribution block is ideal for use in feeder and branch circuits, with single or dual conductor primary inputs and up to 30 secondary outputs.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB67522

Technical Specifications

• Item number: MPDB67522
• Description: Open-Style PDB UL 1953 1000V 360A Tin-plated Aluminum - 460A 2-Pole 2 - 2 openings; 4/0-#6 --- 4/0-#6 Box to Box
• EAN/UPC Code: 782001451974
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 360 A
• Ampere Rating (CU): 460 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 600A Fuse
• Short Circuit Rating (Class L): 100 kA with 600A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 400A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 200A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 600A Fuse
• Number of Poles: 2
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 2
• Number of Openings per Pole (Secondary): 2
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 1/2-20 x .75
• Hex/Screw Size & Type (Secondary): 1/2-20 x .75
• Hole Diameter (Primary): 0.56 in
• Hole Diameter (Secondary): 0.56 in
• Torque Rating (Primary): 4/0-#3 150; #4 100; #6 80
• Torque Rating (Secondary): 4/0-#3 150; #4 100; #6 80
• Wire Range (Primary): 4/0-#6
• Wire Range (Secondary): 4/0-#6
• Installation Mounting: Direct Screw Mount
• Product Width: 3.57 in
• Product Length: 3.08 in
• Product Height: 3.25 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Brand: Mersen
• Current Rating: 460 A
• Manufacturer Part Number: MPDB67522
• Primary Type: Power Distribution Block
• Series: MPDB Series
• Voltage Rating: 1000 V
• Manufacturer: Mersen
• Product Series: MPDB
• Family Series: Mersen Power Distribution Blocks, MPDB Series
• AC Voltage: 600 VAC
• Number of Inputs per Pole: 2
• Number of Outputs per Pole: 2
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Line Side Wire Range: 4/0-6 AWG
• Output Wire Range: 4/0-10 AWG
• Cover Included: No
• Composition: Glass-Fill Polycarbonate
• Approvals: CSA, UL
• Net Weight: 1.1 lbs
• Gross Weight: 1.1 lbs
