Mersen MPDB67023 power distribution block 350 A replaces 67023

Product Description

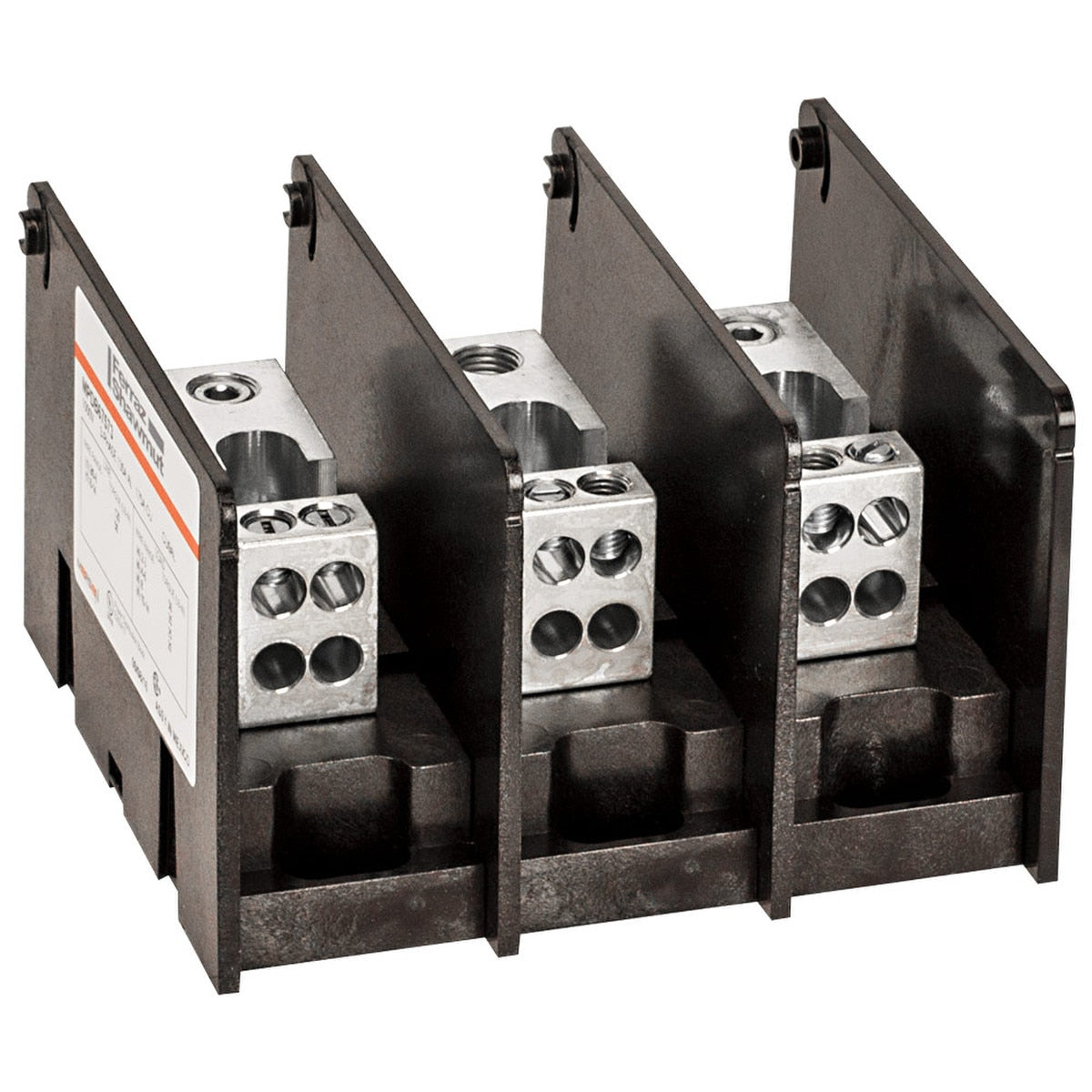

The Mersen MPDB67023 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. This intermediate open style block is UL and CSA approved and meets spacing requirements for feeder and branch circuits. Rated at 600 VAC and 350 A with 3 poles, it accepts 14 to 2/0 AWG wire.

• Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
• Insulators are virtually unbreakable, made of glass filled polycarbonate
• See-through, hinged safety covers provide a greater degree of safety and shock resistance where required

Product Highlights

The Mersen MPDB67023 power distribution block is ideal for splicing cables and splitting primary power. It is UL and CSA approved.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB67023
• Country of Origin: MX

Technical Specifications

• Series: MPDB
• Voltage Rating: 600 VAC
• Amperage Rating: 350 A
• Number of Poles: 3
• Wire Size: 14 to 2/0 AWG
• Short Circuit Current Rating: 100 kA
• Material: Polycarbonate
• Primary Connections/Pole: 2
• Secondary Connection/Pole: 2
• Manufacturer Part Number: MPDB67023
• Primary Type: Power Distribution Block
• Type: Terminal
• Connector Style: Screw-On
• Contact Material: Copper
• Compatible Mounting Type: Panel
