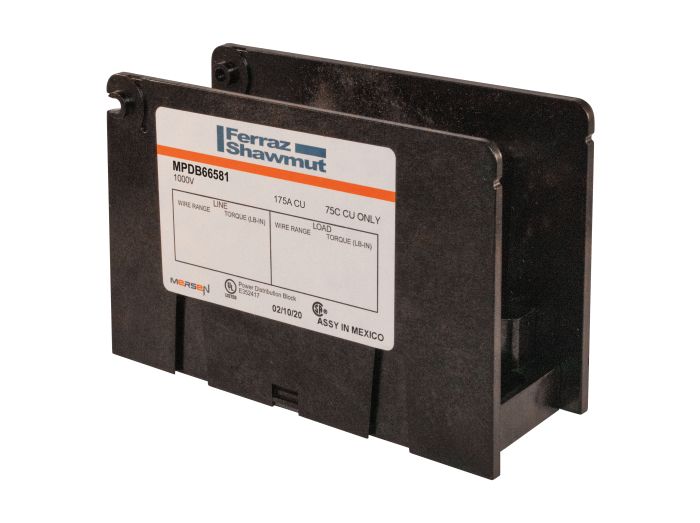

Mersen MPDB66581 MPDB Series UL 1953 1000V - 175A CU INT 1-Pole 1 - 8

Product Description

The Mersen MPDB66581 is an open-style power distribution block from the MPDB series, designed to provide a safe and easy method for splicing cables and splitting primary power into secondary circuits. This UL 1953 listed block features tin-plated copper and supports up to 1000V and 175A. It facilitates fixed junction tap-off points and meets spacing requirements for feeder and branch circuits when used with UL508A and the National Electrical Code.

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap-off points

Product Highlights

This Mersen power distribution block is UL and CSA approved, offering single or dual conductor primary inputs and up to 30 secondary outputs.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: MPDB66581
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: MPDB66581
• Manufacturer: Mersen
• Brand: Mersen
• Country of Origin: Mexico
• Made in USA: No
• Application: Splicing cables Splitting primary power into secondary circuits Fixed junction tap-off points.
• Connection: Box To Box
• Material: Tin-plated Copper
• Mounting: Screw
• Special Features: Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field without the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block. Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated. Many part numbers are rated to accept DLO-type fine-strand wire, allowing users to connect flexible conductors. Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. “See-through,” hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools. Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A. Safety Covers: Polycarbonate safety covers provide dead-front protection. One cover is needed for each pole. Each cover has a test probe hole in the center for circuit checking. Covers are optional accessories and catalog numbers can be found in the catalog selection tables for each size block.
• Standard: UL Listed to subject 1953, File E352417 unless noted otherwise CSA Certified Class 6228 01
• UPC: 782001451622
• GTIN: 00782001451622
• Item Type: Open-Style Power Distribution Blocks
• Voltage Rating: 1000
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (CU): 175 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 200A Fuse
• Short Circuit Rating (Class L): 100 kA with 200A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 100A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 30A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 200A Fuse
• Number of Poles: 1
• Connector Material: Tin-plated Copper
• Number of Openings per Pole (Primary): 1
• Number of Openings per Pole (Secondary): 8
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 3/8-24 x .56
• Hex/Screw Size & Type (Secondary): 5/16-24 x .38
• Hole Diameter (Primary): 0.44 in
• Hole Diameter (Secondary): 0.31 in
• Torque Rating (Primary): 2/0-#3 50; #4-#6 45; #8 40; #10-#14 20
• Torque Rating (Secondary): #2-#3 50; #4-#6 35; #8 25; #10-#14 20
• Wire Range (Primary): 2/0-#14
• Wire Range (Secondary): #2-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 1.85 in
• Product Length: 3.08 in
• Product Height: 3.25 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Series: MPDB
• Family Series: Mersen Power Distribution Blocks, MPDB Series
• AC Voltage: 600 VAC
• Current Rating: 175 A
• Number of Inputs per Pole: 1
• Number of Outputs per Pole: 8
• Electrical Connection: Box Lug/Box Lug
• Panel Mount: Panel Mount
• Line Side Wire Range: 2/0-14 AWG
• Output Wire Range: 2-14 AWG
• Cover Included: No
• Composition: Glass-Fill Polycarbonate
• Approvals: CSA, UL
• Fuse Voltage Rating: 1000 Volts
• Component: Power Distribution Block
• Fuse Amperage Rating: 175 Amp
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Box
• Voltage - Rated: 1000 V
• Current Rating (Amps): 175 A
• Line Side Connections Per Pole: 1
• Load Side Connections Per Pole: 8
• Line Side Connection Type: Screw Connection
• Load Side Connection Type: Screw Connection
• Line Side Wire/Stud Size: 2/0 - #14CU
• Load Side Wire/Stud Size: 2 - #14CU
