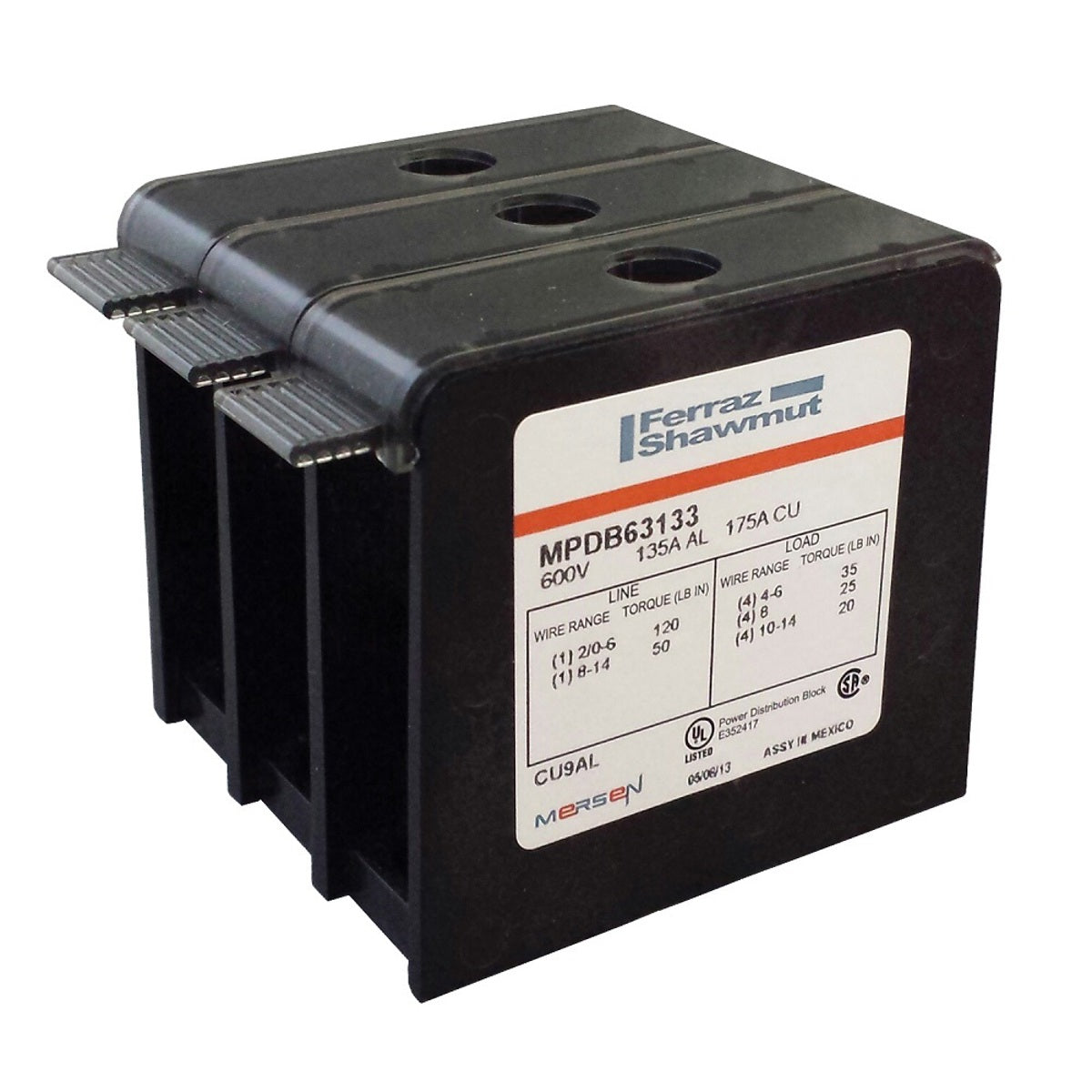

Mersen MPDB63133 Miniature Open Style Power Distribution Block 600 VAC 175 A 3 Poles 14 to 2/0 AWG 14 to 4 AWG

Product Description

The Mersen MPDB63133 is a power distribution block designed for safe and efficient power management. Rated for 600 volts and 175 amps, this block features three poles suitable for wires sized between fourteen and two/zero AWG. It is ideal for applications requiring splicing cables, splitting primary power into secondary circuits, and establishing fixed junction tap-off points.

• Compatible with 14 to 2/0 AWG wire and 14 to 4 AWG wire
• UL and CSA approved for reliable performance
• Open-style design for easy installation and access

Product Highlights

This power distribution block offers durable construction with a tin-plated aluminum design. It includes features such as adder poles for increased flexibility and customization, as well as optional safety covers for enhanced protection against electrical hazards.

Product Information

Standard Information

• Manufacturer: Mersen
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: MPDB63133
• Amperage Rating: 175 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Material: Tin-plated Aluminum
• Dimensions: 2.91 x 3.08 x 2.81 inches
• Connection Type: Box to Box
