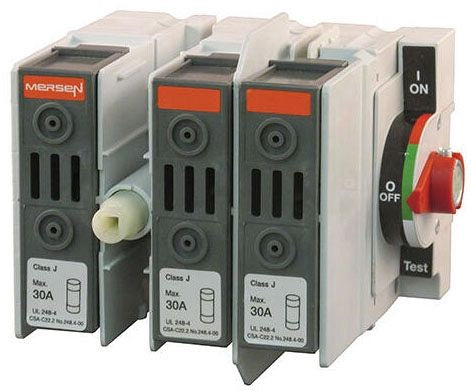

Mersen M30J30S UL 98 Fusible Switch 600VAC Class J 30A 3-Pole Configuration: Side Operated

Product Description

The Mersen M30J30S is a UL 98 fusible switch that can handle 600VAC. This switch is rated for 30 amperes and is designed in a three-pole configuration which allows for efficient electrical isolation. The side-operated feature provides ease of access for operations.

• Amperage Rating: 30A
• Voltage Rating: 600VAC
• Application: Main disconnects, short circuit protection, electrical isolation

Product Highlights

The Mersen M30J30S is ideal for various applications requiring reliable under-load switching and safety. It is built for durability and conforms to strict safety standards.

Product Information

Standard Information

• Catalog Number: M30J30S
• Manufacturer: Mersen

Technical Specifications

• Country of Origin: Finland
• Mounting Type: Base Mounted
• Number of Poles: 3
• Connection Type: Box
• Special Features: Multiple Configurations, Power Taps, Adjustable Shaft Depth, Fuse Monitoring, Interlocked Fuse Doors
• Size: 4.45 x 5.18 x 4.11 inches
• Compliance Standard: Meets UL & CSA requirements
