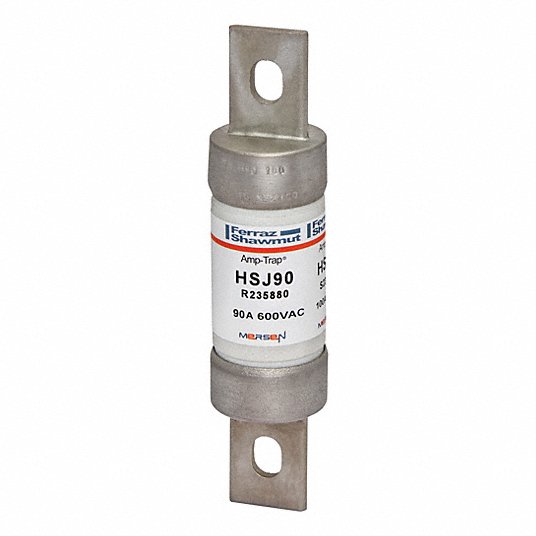

Mersen HSJ90 Fuse HSJ - Class J - High-Speed 600VAC 500VDC 90A Blade Amp-Trap

Product Description

The MERSEN HSJ90 is a Class J high-speed fuse that combines the low I2t of a semiconductor fuse with the branch-circuit performance of a Class J UL Listed fuse. It provides branch circuit protection per NEC requirements and very low I2t for protecting power semiconductors like Diodes, SCRs, GTOs, and SSRs.

• Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
• Low I2t (low thermal energy)
• Excellent cycling ability for frequent starts/stops without nuisance opening

Product Highlights

The MERSEN HSJ90 fuse offers reliable protection for both branch circuits and power semiconductors.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: HSJ90
• Country of Origin: Mexico

Technical Specifications

• Item number: HSJ90
• Description: Fuse HSJ - Class J - High-Speed 600VAC 500VDC 90A Blade Amp-Trap
• EAN/UPC Code: 782001329587
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 500 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 90 A
• AC or DC: AC/DC
• Fuse Class: Class J
• Speed/Characteristic: High Speed
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 1.06 in
• Product Length: 4.63 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• Manufacturer: Mersen
• Voltage Rating: 600VAC, 500VDC
• Interrupt Rating: 200kA I.R. AC, 100kA
• Class: Class J
• Approvals: UL/CSA
• Alternate Mfr Part Number: R235880
• Breaking Capacity: 200 kA
• Current Rating: 90 A
• For Use With: Fuses
• Manufacturer Part Number: HSJ90
• Speed: high speed sec
• Unit of Measure: EA
• Series: HSJ
• AC Voltage Rating: 600 V AC
• Body Material: Glass Fiber-Reinforced Melamine
• Bolt Hole Center-to-Center Distance: 3-5/8 in
• Bolt Hole Diameter: 3/8 in
• Compatible Fuse Block Series: FB60J100B1; FB60J100B3
• DC Voltage Rating: 500 V DC
• Element: Single
• Fuse Block Style: Rejection
• Fuse Body Style: Blade
• Fuse Class or Type: J
• Interrupt Rating - AC: 200 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 27 mm
• Overall Length: 117.6 mm
• Standards: RoHS; UL/CSA
• Visual Indication: Non-Indicating
• Voltage Rating (AC): 600 V
• Voltage Rating (DC): 500 V
• Environmental Classification: CSA
• REACH SVHC: Yes
• RoHS: Compliant
• Amp Rating: 90 A
• Poles: See Spec or N/A
• Options: No Special Options
• Type of Product: Fuses
• Rated Voltage AC: 600 V
• Rated Voltage DC: 500 V
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Diameter: 1.125 in.
• Connection: Blade
• Characteristics: High Speed
• Interrupting Rating: 200kA IR
• Voltage: 600V AC / 500V DC
