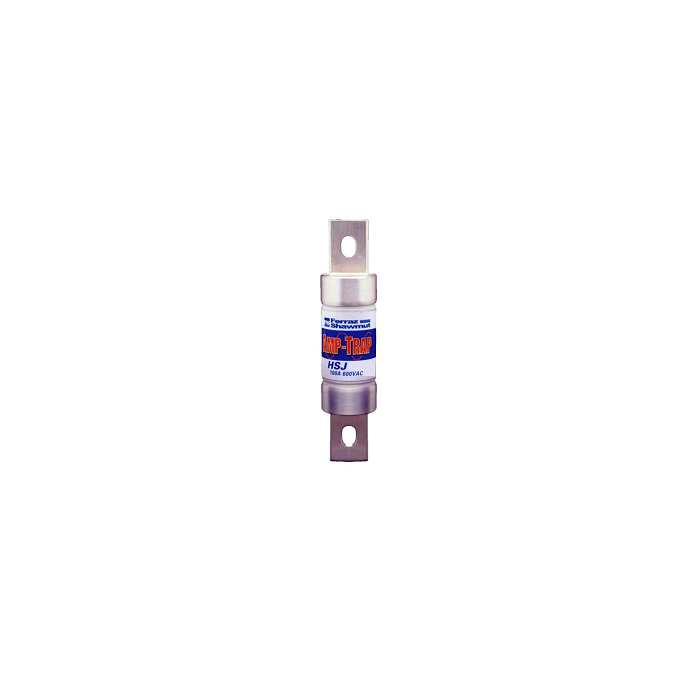

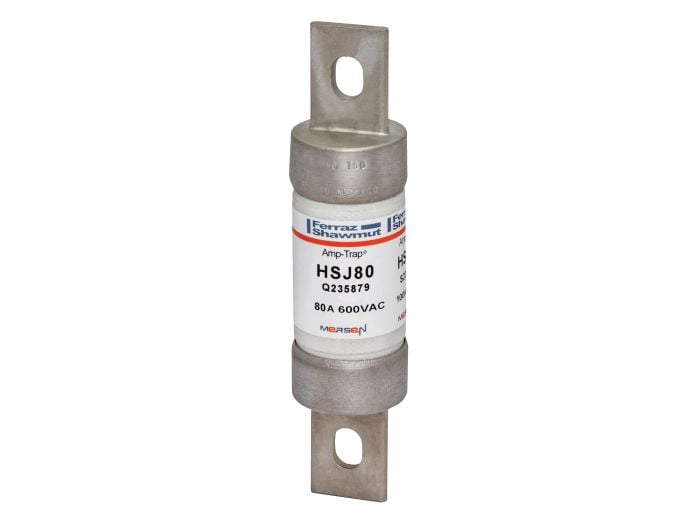

Mersen HSJ80 Fuse HSJ - Class J - High-Speed 600VAC 500VDC 80A Blade Amp-Trap

Product Description

The MERSEN HSJ80 is a High Speed Class J fuse that combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. The HSJ can provide branch circuit protection and very low I2t for protection of power semiconductors.

• Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
• Low I2t (low thermal energy)
• Excellent cycling ability for frequent starts/stops without nuisance opening

Product Highlights

This fuse is designed for solid state motor controllers, offering current limiting and excellent cycling ability in a compact size.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: HSJ80
• Country of Origin: Mexico

Technical Specifications

• Item number: HSJ80
• Description: Fuse HSJ - Class J - High-Speed 600VAC 500VDC 80A Blade Amp-Trap
• EAN/UPC Code: 782001329570
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 500 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 80 A
• AC or DC: AC/DC
• Fuse Class: Class J
• Speed/Characteristic: High Speed
• Mounting Type: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 1.06 in
• Product Length: 4.63 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)
• Voltage: 600
• Series: HSJ
• Catalog Number: HSJ-80
• Catalog / Class: J
• Speed: Very Fast Acting
• SKU: HSJ-80
• AC Voltage Rating: 600 V AC
• DC Voltage Rating: 500 V DC
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Physical Size: 1 1/16" x 4 5/8"
• UNSPSC: 39121628
• Approval: UL 248/248-8, CSA C22.2
• Current Rating: 80 Amp
• Voltage Rating: 600 Volt AC, 500 Volt DC
• Characteristics: High Speed
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Type: Class J
• Diameter: 1-1/8 Inch
• Body Material: Glass Fiber-Reinforced Melamine
• Bolt Hole Center-to-Center Distance: 3-5/8 in
• Bolt Hole Diameter: 3/8 in
• Compatible Fuse Block Series: FB60J100B1; FB60J100B3
• Element: Single
• Fuse Block Style: Rejection
• Fuse Body Style: Blade
• Fuse Class or Type: J
• Interrupt Rating - AC: 200 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 27 mm
• Overall Length: 117.6 mm
• Standards: RoHS; UL/CSA
• Visual Indication: Non-Indicating
• Material: GMG
• Application: Branch Circuits, Control Panels, Electronic Motor Controllers, Phase Controllers, Drives, Soft-starters and Solid State Relays
• Standard & Approvals: UL 248-8 File E2137, CSA C22.2 No. 248.8, RoHS Compliant
• Body Size: 1-1/8 in Dia x 4-4/8 in L
• Body Style: Cylindrical
• Class: J
• Net Weight: 0.225 lbs
• Gross Weight: 0.237 lbs
• AC Voltage: 600 VAC
• DC Voltage: 500 VDC
• Characteristic: Fast Acting
• Interrupt Rating: 200 kA @ 600 V
• Trip Indicator: No
• Alarm Contacts: No
• Approvals: CE, CSA, UL
