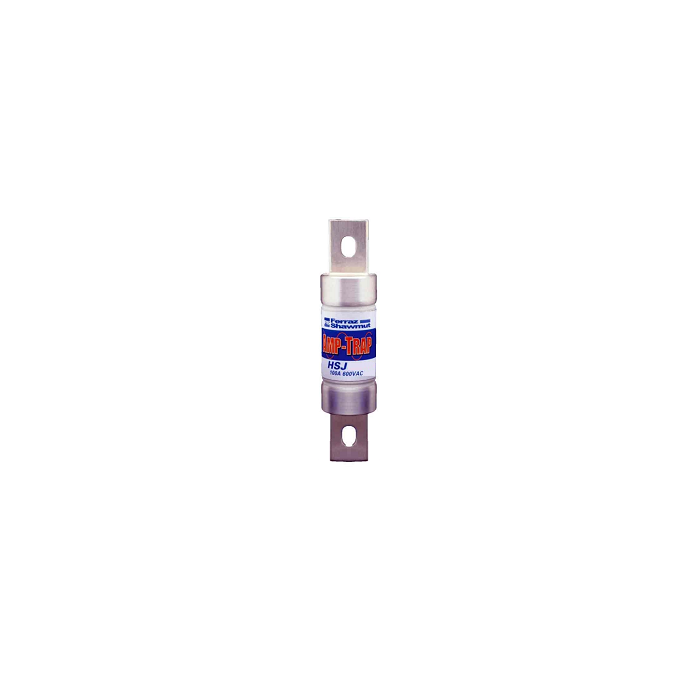

Mersen HSJ70 Fuse HSJ - Class J - High-Speed 600VAC 500VDC 70A Blade Amp-Trap

Product Description

The Mersen HSJ70 is a Class J high-speed fuse that combines the low I2t of a semiconductor fuse with the branch-circuit performance of a Class J UL Listed fuse. It provides branch circuit protection per NEC requirements and very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.

• Combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse
• Provides branch circuit protection per NEC requirements
• Very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs

Product Highlights

This fuse is designed for solid state motor controllers, offering current limiting and excellent cycling ability in a compact size.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: HSJ70
• Country of Origin: Mexico

Technical Specifications

• Item number: HSJ70
• Description: Fuse HSJ - Class J - High-Speed 600VAC 500VDC 70A Blade Amp-Trap
• EAN/UPC Code: 782001329563
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 500 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 70 A
• AC or DC: AC/DC
• Fuse Class: Class J
• Speed/Characteristic: High Speed
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 1.06 in
• Product Length: 4.63 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• AC Voltage Rating: 600 V AC
• DC Voltage Rating: 500 V DC
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Listed to Standard: 248-8 File E2137
• DC Listed to UL Standard: 248
• CSA Certified to Standard: C22.2 No. 248.8
• Amperage: 70
• Series: HSJ Series
• Type of Product: Fuses
• Interrupt Rating - AC: 200 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 27 mm
• Overall Length: 117.6 mm
• Standards: RoHS; UL/CSA
• Visual Indication: Non-Indicating
• Current Rating: 70 A
• For Use With: Fuses
• Primary Type: Single Use Fuses
• Speed: high speed sec
• Voltage Rating: 600 V
• MPN: HSJ70
• Fuse Type: HSJ70
• UPC: Does not apply
• Element: Single
• Fuse Block Style: Rejection
• Fuse Body Style: Blade
• Fuse Class or Type: J
• Body Material: Glass Fiber-Reinforced Melamine
• Bolt Hole Center-to-Center Distance: 3-5/8 in
• Bolt Hole Diameter: 3/8 in
• Compatible Fuse Block Series: FB60J100B1; FB60J100B3
