Product Description

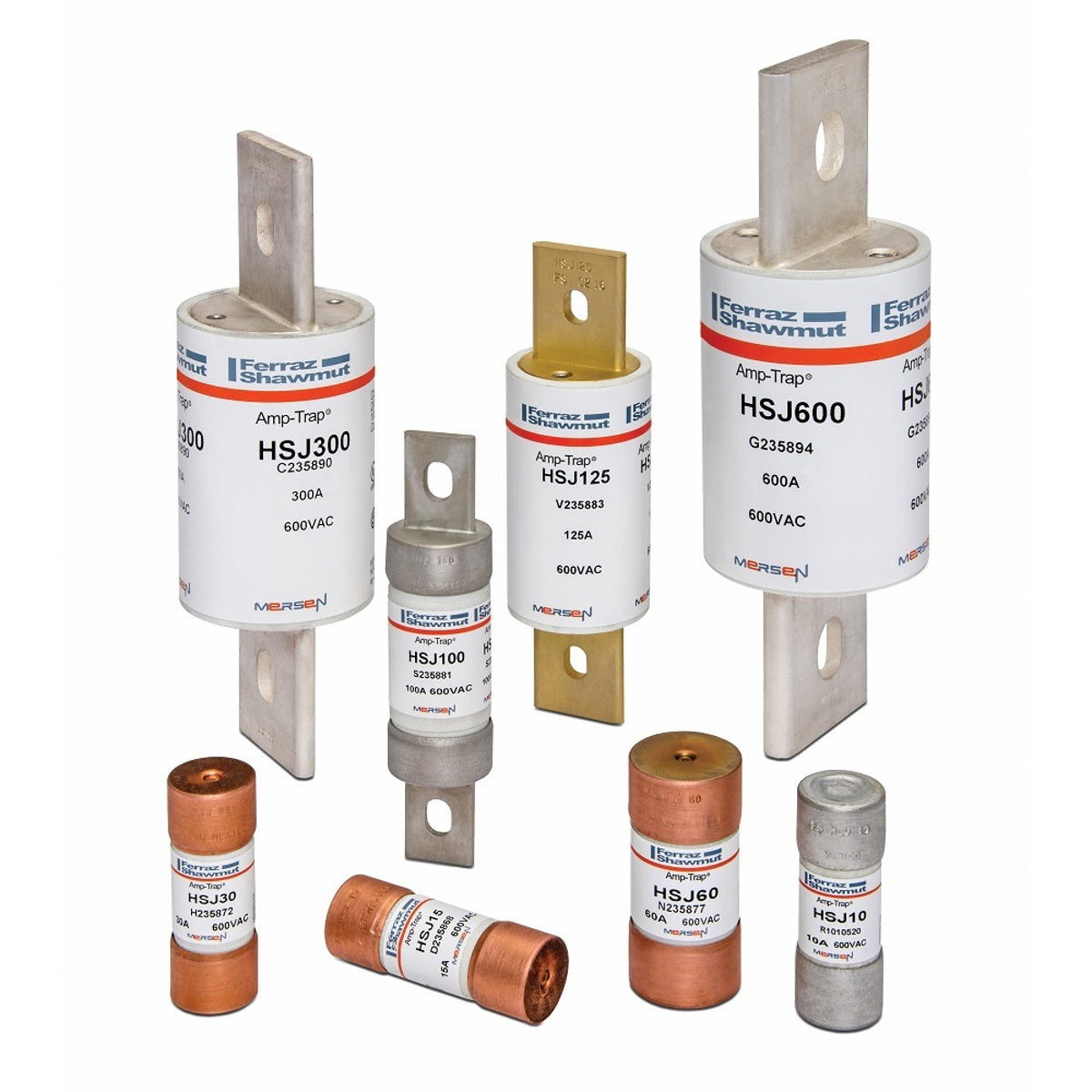

The Mersen HSJ50 is a Class J high-speed fuse designed for applications requiring reliable protection. This component operates at 600 volts AC and 500 volts DC with a current rating of fifty amps. The HSJ50 provides effective branch circuit protection according to NEC standards.
- Voltage rating: 600 VAC/500 VDC
- Amperage rating: 50 A
- Interrupt rating: 200 kA
Product Highlights
This fuse is optimized for over-load capability, allowing it to handle elevated current levels during motor starts. It features low thermal energy let-through and excellent cycling ability for frequent starts and stops.
Product Information
Standard Information
-
Catalog Number: HSJ50
-
Manufacturer: Mersen
Technical Specifications
-
Voltage Rating: 600 VAC/500 VDC
-
Amperage Rating: 50 A
-
Interrupt Rating: 200 KA
-
Connection: Ferrule
-
Application: Branch circuits, control panels, electronic motor controllers, phase controllers, drives, soft-starters, solid state relays
-
Country of Origin: Mexico
-
Standard Compliance: UL 248-8, CSA C22.2 No. 248.8
-
Cross Reference Products: Bussmann DFJ-50
