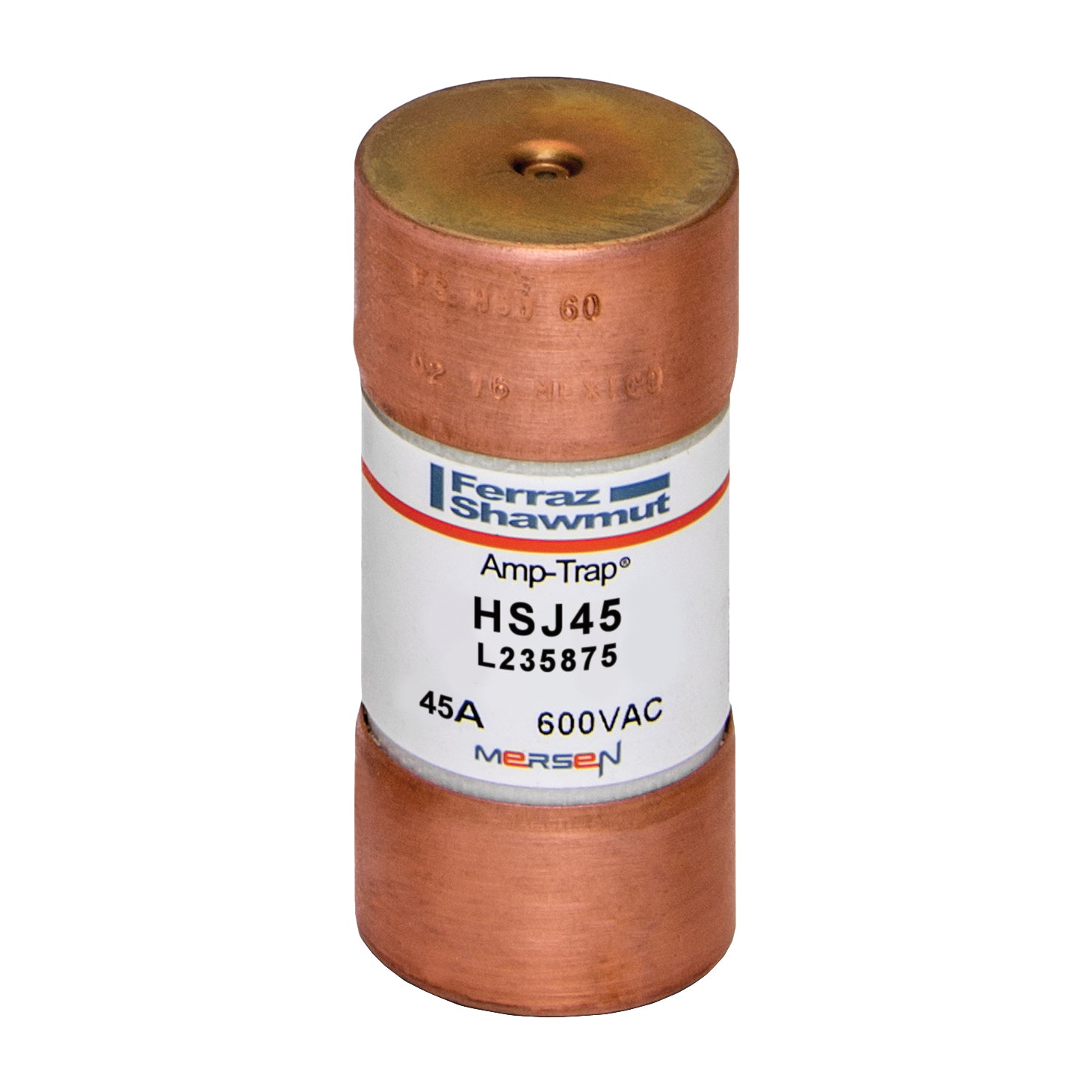

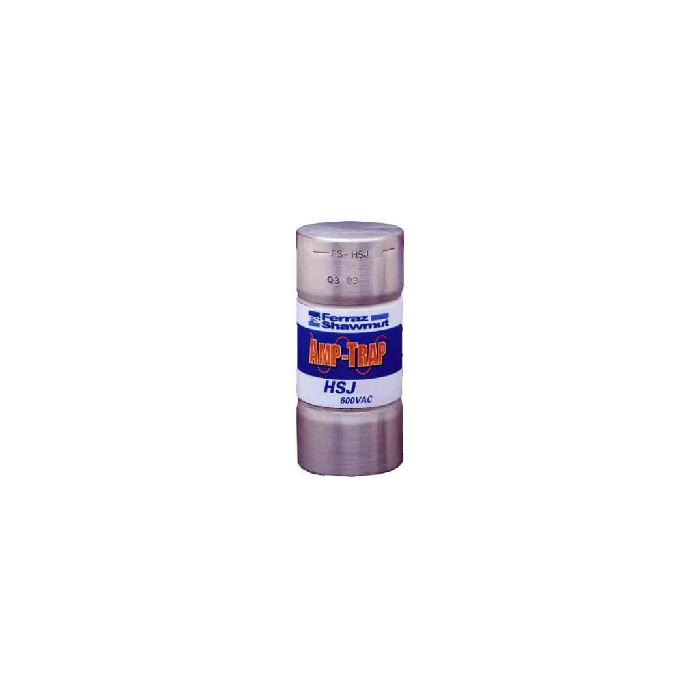

Mersen HSJ45 Fuse HSJ - Class J - High-Speed 600VAC 500VDC 45A Ferrule Amp-Trap

Product Description

The MERSEN HSJ45 is a High Speed Class J fuse that combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. It provides branch circuit protection per NEC requirements and very low I2t for protection of power semiconductors.

• Combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse
• Provides branch circuit protection per NEC requirements
• Very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs

Product Highlights

The HSJ fuse series is designed for solid state motor controllers, offering current limiting and excellent cycling ability in a compact size.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: HSJ45
• Country of Origin: Mexico

Technical Specifications

• Item number: HSJ45
• Description: Fuse HSJ - Class J - High-Speed 600VAC 500VDC 45A Ferrule Amp-Trap
• EAN/UPC Code: 782001329525
• Rated Voltage AC UL: 600 V
• Rated Voltage DC UL: 500 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 45 A
• AC or DC: AC/DC
• Fuse Class: Class J
• Speed/Characteristic: High Speed
• Mounting Type: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 1.06 in
• Product Length: 2.38 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• Product Weight: 0.157 lb
• Amps: 45
• Volts AC: 600
• Feature: Compact Size
• Application: Designed for Protection of Power Semiconductors
• Physical Size: 1 1/16" x 2 3/8"
• AC Voltage Rating: 600
• DC Voltage Rating: 500
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Listed: to Standard 248-8 File E2137
• DC Listed: to UL Standard 248
• CSA Certified: to Standard C22.2 No. 248.8
• Brand: MERSEN
• Series: HSJ
• Current Rating: 45 A
• Element: Single
• Fuse Block Style: Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: J
• Interrupt Rating - AC: 200 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 1-1/16 in
• Overall Length: 2-3/8 in
• Speed: Very-Fast-Acting
• Standards: UL file E2137; UL recognized component
• Visual Indication: Non-Indicating
• UNSPSC: 39121606
• Voltage Rating - DC: 500 VDC
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Packaging: Bulk
• Class: J
• Part Status: Active
• Approval Agency: CSA, UL
• Mounting: Clip
• Breaking Capacity @ Rated Voltage: 200kA AC, 100kA DC
• Fuse Type: Cartridge
• Package / Case: Cartridge, Non-Standard
• Current Rating (Amps): 45A
• Size / Dimension: 1.063" Dia x 2.362" L (27.00mm x 60.00mm)
• Voltage Rating - AC: 600 VAC
• Amp Rating: 45 A
• Type of Product: Fuses
• Rated Voltage AC: 600 V
• Rated Voltage DC: 500 V
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Terminal Material: Tin-Plated Copper
• Terminal Type: Ferrule
• Body Material: Glass Fiber-Reinforced Melamine
• Insulation Material: GMG
• Interrupt Rating: 200 kAIC
• Tc Connection: Ferrule
• Voltage: 600 VAC, 500 VDC
