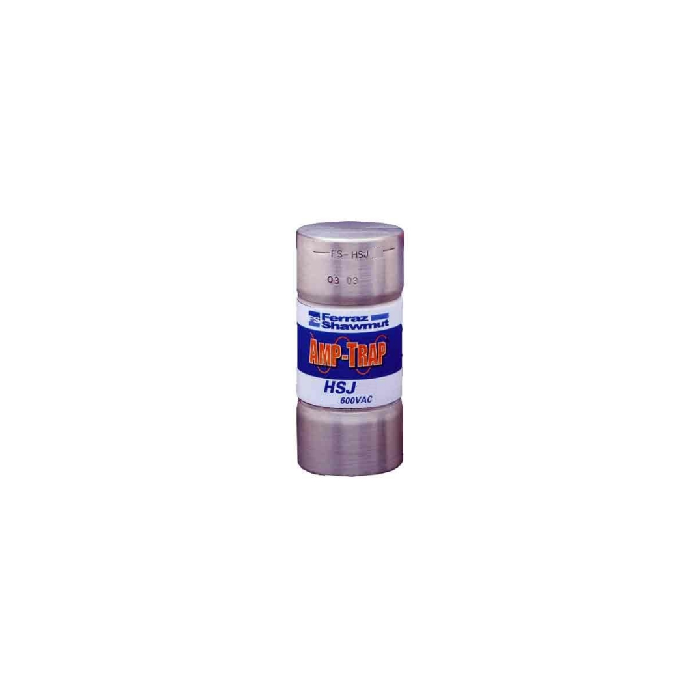

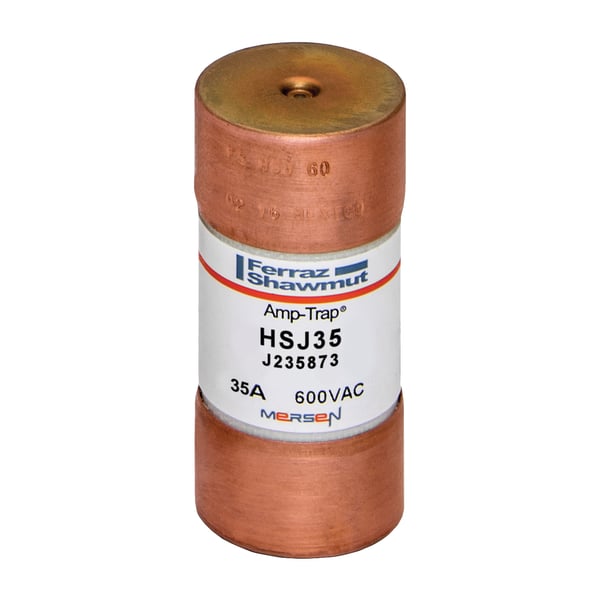

Mersen HSJ35 Fuse HSJ - Class J - High-Speed 600VAC 500VDC 35A Ferrule Amp-Trap

Product Description

The MERSEN HSJ35 is a High Speed Class J fuse that combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. It provides branch circuit protection per NEC requirements and very low I2t for protection of power semiconductors.

• Combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse
• Provides branch circuit protection per NEC requirements
• Very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs

Product Highlights

The MERSEN HSJ35 fuse is ideal for branch circuits, control panels, electronic motor controllers, phase controllers, drives, soft-starters and solid state relays.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: HSJ35
• Country of Origin: Mexico

Technical Specifications

• Item number: HSJ35
• Description: Fuse HSJ - Class J - High-Speed 600VAC 500VDC 35A Ferrule Amp-Trap
• EAN/UPC Code: 782001329501
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 500 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 35 A
• AC or DC: AC/DC
• Fuse Class: Class J
• Speed/Characteristic: High Speed
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 1.06 in
• Product Length: 2.38 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• Product Weight: 0.157 lb
• AC Voltage Rating: 600 V AC
• DC Voltage Rating: 500 V DC
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Physical Size: 1 1/16" x 2 3/8"
• Amps: 35
• Volts: 600
• Series: HSJ Series
• Options: No Special Options
• Type of Product: Fuses
• Body Material: Glass Fiber-Reinforced Melamine
• Compatible Fuse Block Series: JFB; SJ
• Current Rating: 35 A
• Element: Single
• Fuse Block Style: Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: J
• Interrupt Rating - AC: 200 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 1-1/16 in
• Overall Length: 2-3/8 in
• Speed: Very-Fast-Acting
• Standards: UL file E2137; UL recognized component
• Visual Indication: Non-Indicating
• UNSPSC: 39121606
• Mounting Type: Clip
• Terminal Type: Ferrule
• Rejection/Non-Rejection: Rejection
• Type: Current Limiting Low Voltage
• Body Size: 1-1/16 in Dia x 2-3/8 in L
• Material: Fiber
• Body Type: Cylindrical
