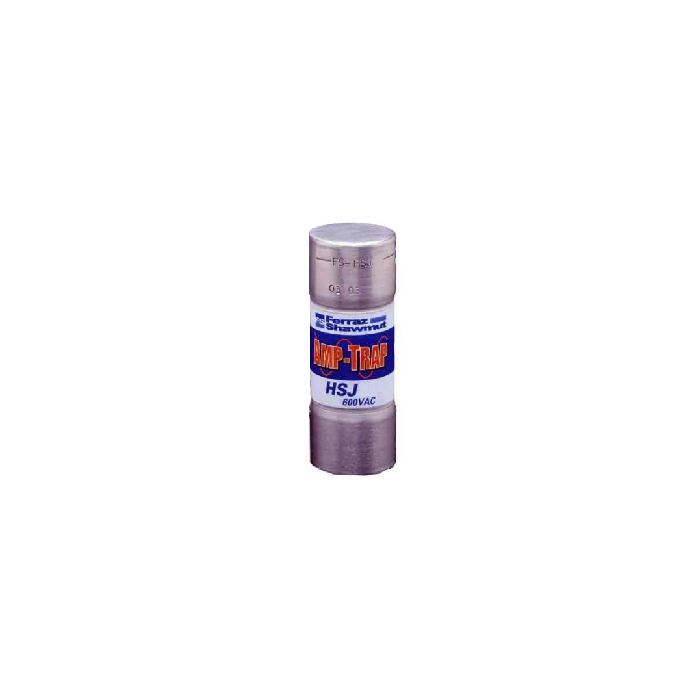

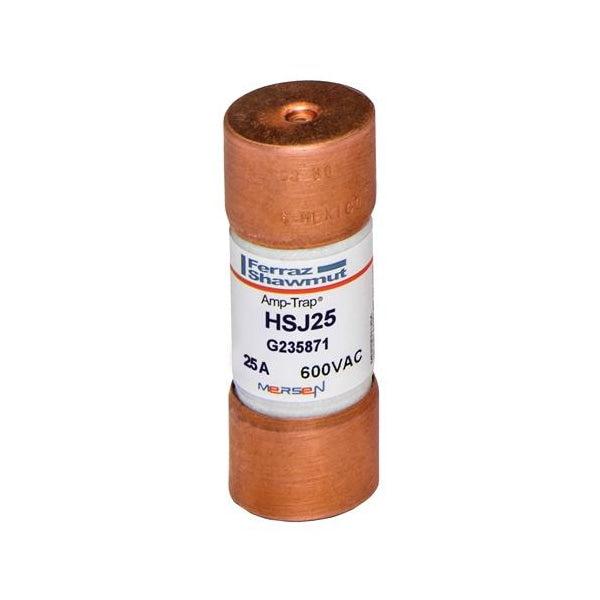

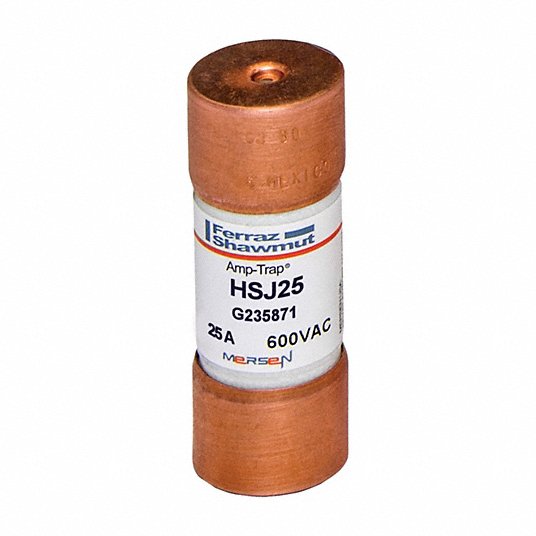

Mersen HSJ25 Fuse HSJ - Class J - High-Speed 600VAC 500VDC 25A Ferrule Amp-Trap

Product Description

The MERSEN HSJ25 is a Fuse HSJ - Class J - High-Speed fuse that combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. It provides branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors. Designed for solid state motor controllers with excellent cycling ability.

• Combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse
• Provides branch circuit protection per NEC requirements
• Very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs

Product Highlights

The MERSEN HSJ25 fuse offers branch circuit protection and very low I2t for protection of power semiconductors.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: HSJ25
• Country of Origin: Mexico

Technical Specifications

• Item number: HSJ25
• Description: Fuse HSJ - Class J - High-Speed 600VAC 500VDC 25A Ferrule Amp-Trap
• EAN/UPC Code: 782001329488
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 500 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 25 A
• AC or DC: AC/DC
• Fuse Class: Class J
• Speed/Characteristic: High Speed
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.81 in
• Product Length: 2.25 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• Product Weight: 0.089 lb
• Amps: 25A
• Voltage: 600
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 500V DC
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Listed to Standard: 248-8 File E2137
• DC Listed to UL Standard: 248
• CSA Certified to Standard: C22.2 No. 248.8
• Poles: See Spec or N/A
• Series: HSJ Series
• Options: No Special Options
• Type of Product: Fuses
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: G235871
• Brand: Mersen
• Breaking Capacity: 200 kA
• Class: J
• Current Rating: 25 A
• Manufacturer Part Number: HSJ25
• Primary Type: Single Use Fuses
• Speed: high speed sec
• Unit of Measure: EA
• Voltage Rating: 600 V
• Body Material: Glass Fiber-Reinforced Melamine
• Compatible Fuse Block Series: US3J1I; US3J3I
• Element: Single
• Fuse Block Style: Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: J
• Interrupt Rating - AC: 200 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 20.7 mm
• Overall Length: 57.2 mm
• Standards: RoHS; UL/CSA
• Visual Indication: Non-Indicating
• Fuse Speed: High Speed
• Connection Material: Tin-Plated Copper
• Equivalent Brand and Series: Bussmann DFJ, Littelfuse LDFJ, Mersen HSJ
• Equivalent Series: DFJ, HSJ, LDFJ
• Fits Fuse Block Style: Rejection
• Short Description: Fuse Amp-Trap 600V 25A High-Speed Class J HSJ Series
