The MERSEN HSJ225 is a High Speed Class J fuse that combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. It provides branch circuit protection per NEC requirements and very low I2t for protection of power semiconductors.

  • Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
  • Low I2t (low thermal energy)
  • Excellent cycling ability for frequent starts/stops without nuisance opening

Product Highlights

The MERSEN HSJ225 fuse offers optimized overload capability and excellent cycling ability. It is suitable for branch circuits, control panels, electronic motor controllers, and solid state relays.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: HSJ225
  • Country of Origin: Mexico
Technical Specifications
Item number
HSJ225
Description

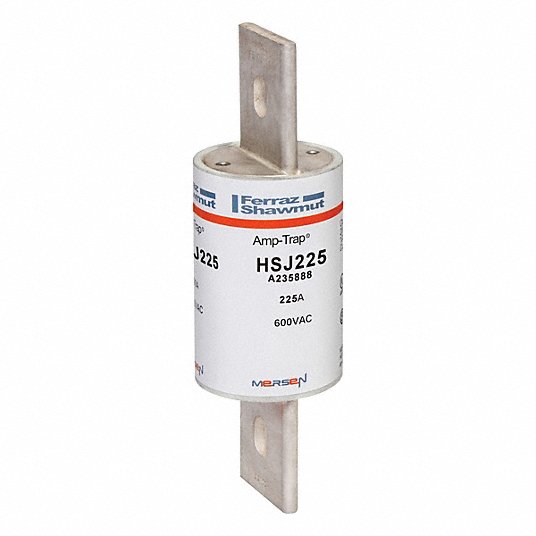

Fuse HSJ - Class J - High-Speed 600VAC 500VDC 225A Blade Amp-Trap
EAN/UPC Code
782001329662
Rated Voltage AC UL
600 V
Rated Voltage DC UL
500 V
Frequency (Hz)
50/60 Hz
Ampere Rating
225 A
AC or DC
AC/DC
Fuse Class
Class J
Speed/Characteristic
High Speed
Mounting
Blades
AC Max I.R./Breaking Capacity: I1
200 kA
Connection/Terminal Material
Brass
Connection/Terminal Type
Blade
Product Diameter
2.12 in
Product Length
7.13 in
Product group
Low Voltage UL/CSA Fuses
Body/Insulating Material
GMG
Series
HSJ Series
Type of Product
Fuses
Body Material
Glass Fiber-Reinforced Melamine
Bolt Hole Center-to-Center Distance
5-1/4 in
Bolt Hole Diameter
17/32 in
Compatible Fuse Block Series
64031J; 64033J
Current Rating
225 A
DC Voltage Rating
500 V DC
Element
Single
Fuse Block Style
Rejection
Fuse Body Style
Blade
Fuse Class or Type
J
Interrupt Rating - AC
200 kA
Interrupt Rating - DC
100 kA
Overall Diameter
54 mm
Overall Length
181.1 mm
Standards
RoHS; UL/CSA
Visual Indication
Non-Indicating
Voltage Rating - DC
500 VDC
Response Time
Fast Blow
Applications
Electrical, Industrial
Packaging
Bulk
Class
J
Part Status
Active
Approval Agency
CSA, UL
Mounting Type
Bolt Mount
Breaking Capacity @ Rated Voltage
200kA AC, 100kA DC
Fuse Type
Cartridge
Package / Case
Cylindrical, Blade Terminal (Bolt)
Current Rating (Amps)
225A
Size / Dimension
2.126" Dia x 7.126" L (54.00mm x 181.00mm)
Voltage Rating - AC
600 VAC
Application
Control Panels Electronic Motor Controllers Phase Controllers Drives Soft-Starters Solid State Relays
Dimensions
2.13 in H X 7.13 in L
For Use With
Fuses
Speed
Fast Acting sec
Termination
Blade
Brand / Manufacturer
MERSEN (FERRAZ SHAWMUT)
Amperage Rating
225
Voltage
600V AC / 500V DC
UPC
0782001329662
Catalog Number
HSJ-225
Catalog / Class
J
Very Fast Acting
Very Fast Acting
Amps
225A
Interrupting Rating
200kA IR AC
Length Overall
7.13 in. (181mm)
Diameter
2.13 in. (54mm)
