Description

Product Description

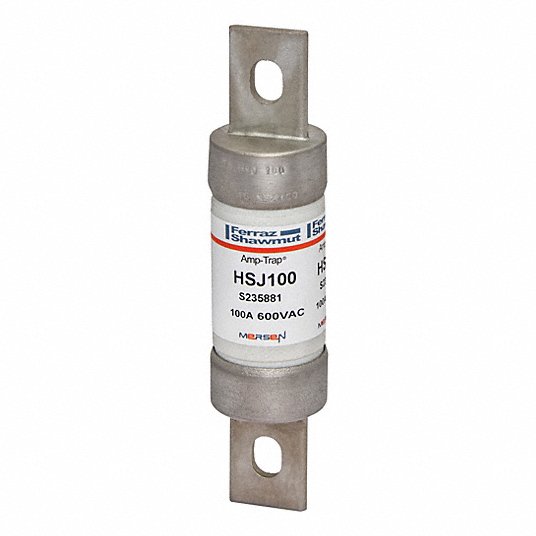

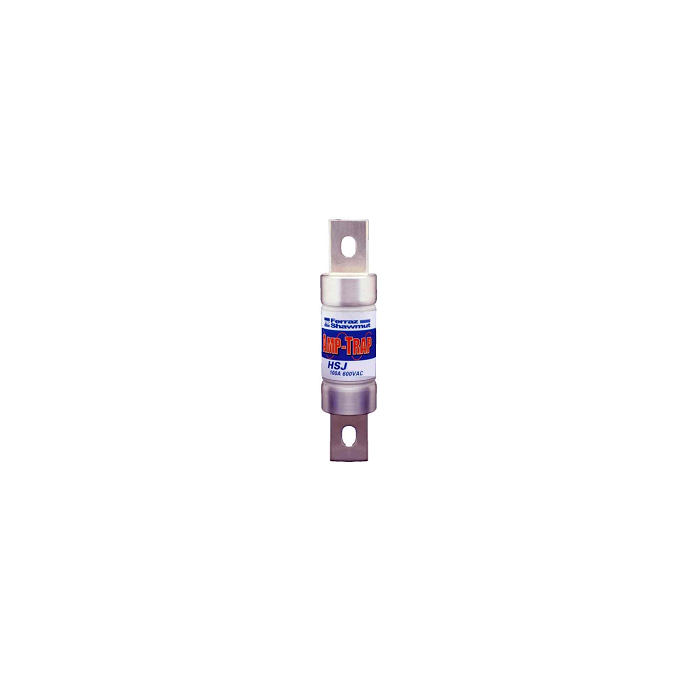

The MERSEN HSJ100 is a high-speed Class J fuse that combines the low I2t of a semiconductor fuse with the branch-circuit performance of a Class J UL Listed fuse. It provides branch circuit protection per NEC requirements and very low I2t for protecting power semiconductors like Diodes, SCRs, GTOs, and SSRs.

  • Combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse
  • Provides branch circuit protection per NEC requirements
  • Very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs

Product Highlights

The HSJ fuse series offers optimized overload capability, excellent cycling ability, and compact size for reliable circuit protection.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: HSJ100
  • Country of Origin: Mexico
Technical Specifications
Item number
HSJ100
Description
Fuse HSJ - Class J - High-Speed 600VAC 500VDC 100A Blade Amp-Trap
EAN/UPC Code
782001329594
Rated Voltage AC UL
600 V
Rated Voltage DC UL
500 V
Frequency (Hz)
50/60 Hz
Ampere Rating
100 A
AC or DC
AC/DC
Fuse Class
Class J
Speed/Characteristic
High Speed
Mounting
Clip
AC Max I.R./Breaking Capacity: I1
200 kA
Connection/Terminal Material
Silver-Plated Copper
Connection/Terminal Type
Blade
Product Diameter
1.06 in
Product Length
4.63 in
Product group
Low Voltage UL/CSA Fuses
Body/Insulating Material
GMG
AC Voltage Rating
600 V AC
DC Voltage Rating
500 V DC
AC Interrupting Rating
200,000 AIC
DC Interrupting Rating
100,000 AIC
Physical Size
1 1/16" x 4 5/8"
UNSPSC Code
39120000
Alternate Mfr Part Number
S235881
Application
Control Panels Electronic Motor Controllers Phase Controllers Drives Soft-Starters Solid State Relays
Body Material
Glass Fiber-Reinforced Melamine
Brand
MERSEN
Breaking Capacity
200 kA
Class
Class J
Contact Material
Silver-Plated Copper
Current Rating
100 A
Diameter
1.08 in
Dimensions
1.06 in H X 4.63 in L
For Use With
Fuses
Manufacturer Part Number
HSJ100
Primary Type
Single Use Fuses
Series
HSJ Series
Speed
Fast Acting sec
Standards
RoHS; UL/CSA
Termination
Bolted
Type
Current Limiting High Speed
Amp Rating
100 A
Poles
See Spec or N/A
Options
No Special Options
Type of Product
Fuses
Bolt Hole Center-to-Center Distance
4-3/8 in
Bolt Hole Diameter
3/8 in
Compatible Fuse Block Series
FB60J100B1; FB60J100B3
Element
Single
Fuse Block Style
Rejection
Fuse Body Style
Blade
Fuse Class or Type
J
Interrupt Rating - AC
200 kA
Interrupt Rating - DC
100 kA
Overall Diameter
27 mm
Overall Length
117.6 mm
Visual Indication
Non-Indicating
Interrupt Rating
200/100 kA
Material
GMG
Mounting Type
Holder
Amperage Rating
100 A
Body Size
1-1/8 in Dia x 4-4/8 in L
Body Style
Cylindrical
Terminal Type
Knife Blade
Voltage Rating
600 VAC/500 VDC
Standard & Approvals
UL 248-8 File E2137, CSA C22.2 No. 248.8, RoHS Compliant
