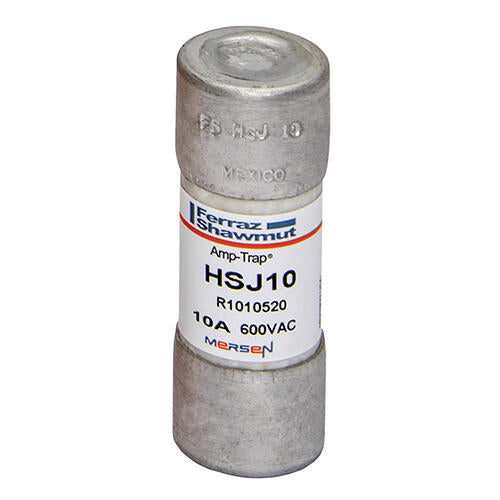

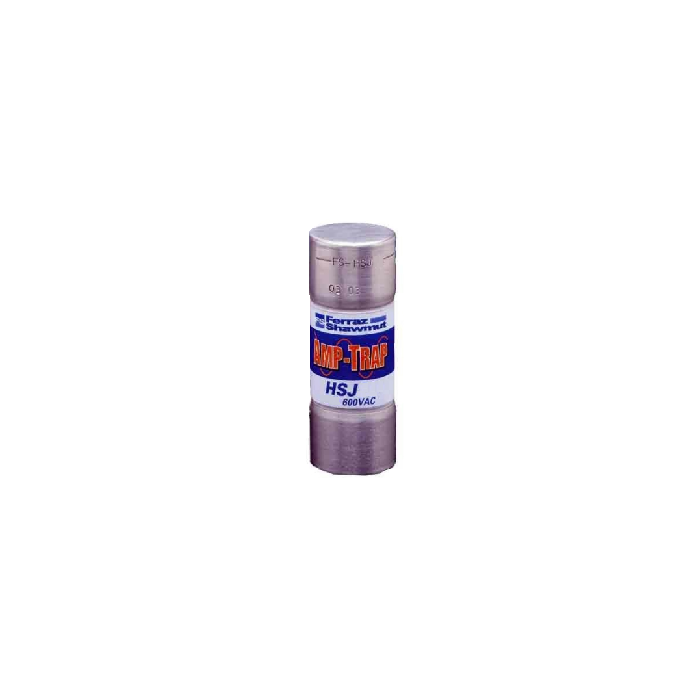

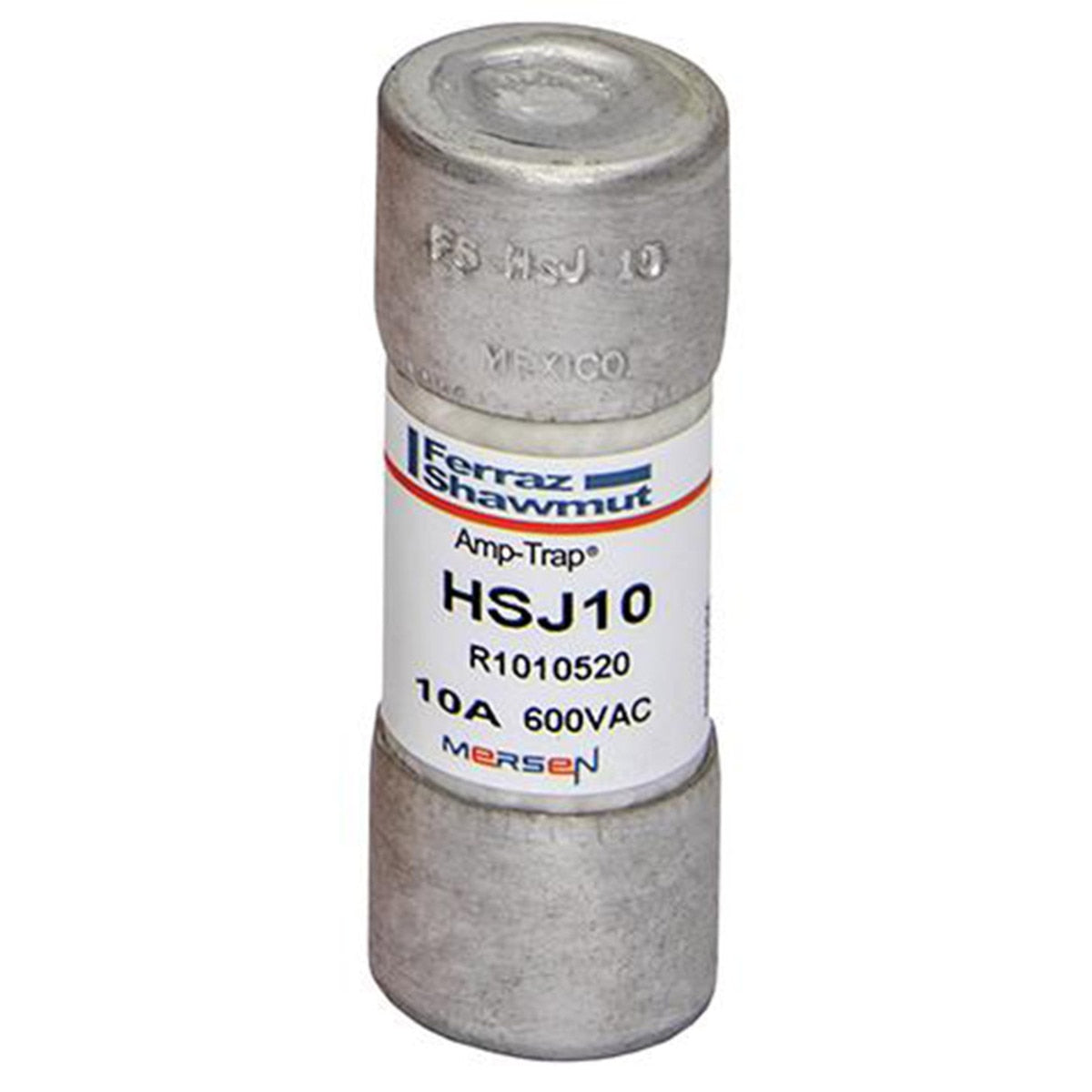

Mersen HSJ10 Fuse 10A

Product Description

The Mersen HSJ10 is a high-speed Class J fuse that combines the low I2t of a semiconductor fuse with branch circuit performance. This 10A fuse provides branch circuit protection and very low I2t for protecting power semiconductors like diodes, SCRs, GTOs, and SSRs. It is suitable for solid state motor controllers.

• Optimized overload capability for withstanding elevated levels of current during electronic motor controller starts
• Low I2t let-thru (thermal energy)
• Excellent cycling ability for frequent starts/stops without nuisance opening

Product Highlights

The HSJ series fuse offers current limiting, AC and DC ratings, and a compact size. It has a 200 kA at 600 VAC and 100 kA at 500 VDC interrupt rating.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: HSJ10
• Country of Origin: Mexico

Technical Specifications

• Class: J
• Series: HSJ
• Material: GMG
• Body Size: 0.81 in Dia x 2.25 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 600 VAC/500 VDC
• Amperage Rating: 10 A
• Interrupt Rating: 200 kA
• Speed: High Speed
• Length: 2.25"
• Diameter: 0.81"
• Fuse Amps: 10A
• Fuse Size: 2-1/4 in L x 0.81 in D
• Fuse Speed: High Speed
• Body Material: GMG
• AC Voltage Rating: 600V
• DC Voltage Rating: 500V DC
• Connection Material: Tin-Plated Copper
• Fuse Voltage Rating: 600V
• Fuse Class: Class J
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Listed to Standard: 248-8 File E2137
• CSA Certified to Standard: C22.2 No. 248.8
• Ratings Volts: 600VAC
• Interrupting Rate: 200kA AC
• Approvals: UL 248-8 File E2137 CSA C22.2 no. 248.8
• Ampere: 10A
• Rated Voltage AC UL: 600 V
• Rated Voltage DC UL: 500 V
• Speed/Characteristic: High Speed
• Connection/Terminal Type: Ferrule
• Body/Insulating Material: GMG
• Product Weight: 0.12 lb
• Product Diameter: 0.81 in
• Product Length: 2.25
