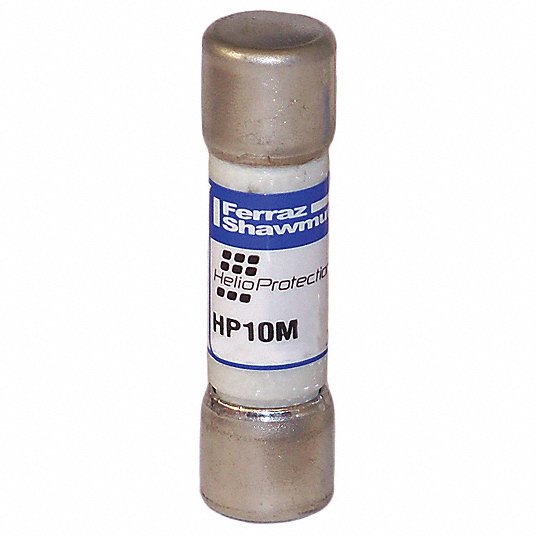

Mersen HP10M20 helioprotection hp10m fuse - photovoltaic 20A

Product Description

The MERSEN HP10M20 HelioProtection fuse is engineered for photovoltaic systems, offering enhanced construction for temperature and current cycling. Rated at 1000VDC, it ensures safe circuit interruption under low fault current conditions typical in PV arrays. Protect your PV system from ground and line faults with this fuse.

• Engineered to protect photovoltaic applications
• Enhanced fuse construction for constant temperature and current cycling withstand
• 1000VDC rated

Product Highlights

The MERSEN HP10M20 fuse provides reliable protection for photovoltaic systems, ensuring longevity and safety.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: HP10M20
• Country of Origin: Mexico

Technical Specifications

• Item number: HP10M20
• Description: Photovoltaic fuse gPV 1000VDC UL 20A With Ferrule For Clip
• EAN/UPC Code: 782001429966
• Rated Voltage DC UL: 1000 V
• Frequency: 50/60 Hz
• Ampere Rating: 20 A
• ROHS Compliant: Yes
• AC or DC: DC
• Fuse Class: Photovoltaic
• Speed/Characteristic: gPV
• Mounting Type: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product group: Special Purpose Fuses
• Body/Insulating Material: GMG
• Brand: MERSEN
• Series: HP10M
• Manufacturer Part Number: HP10M20
• Body Material: Glass Fiber-Reinforced Melamine
• Current Rating: 20
• DC Voltage Rating: 1 kV
• Display Qty: 1
• Display Sell UOM: EA
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Dia x Length: 13/32 in x 1-1/2 in
• Interrupt Rating - DC: 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Fast-Acting
• Standards: CE; CSA Component Certified C22.2; IEC 60269-6 Approved; UL Listed to Standard UL2579 File E333668
• Visual Indication: Non-Indicating
• UNSPSC: 39121608
• Voltage: 1000 VDC
• Applications: All Photovoltaic Applications PV String/Array Level Protection Combiner Box Applications In-Line PV Module Protection Inverters Battery Charge Controllers
• Insulation Material: GMG
• Interrupt Rating: 10 kAIC
• Max Operating Temperature: 80 degrees C
• Rated Voltage DC: 1000 V
• Terminal Material: Tin-Plated Copper
• Type: Photovoltaic
• Packaging: Pkg Qty 10
