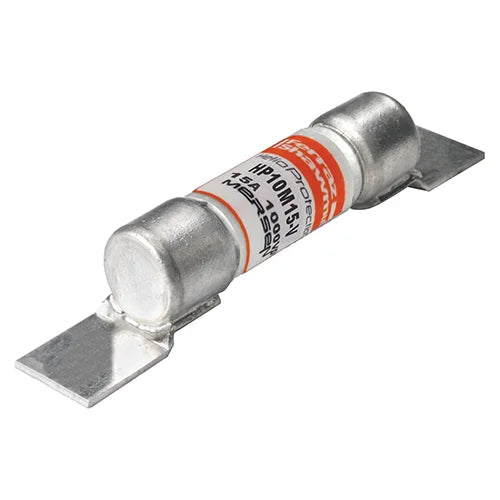

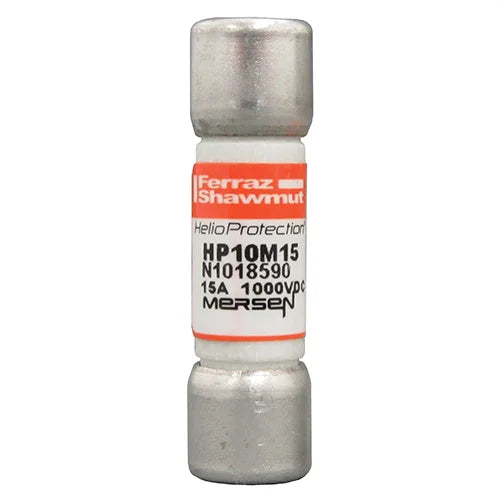

Mersen HP10M15 Fuse 15A

Product Description

The MERSEN HP10M15 is engineered to protect photovoltaic applications. This photovoltaic (PV) fuse series was designed specifically for the protection of photovoltaic systems. Its enhanced fuse construction makes it ideal for constant temperature and current cycling withstand adding to system longevity. Protect your off-grid or grid tied PV system from unexpected ground faults and line faults.

• Engineered to protect photovoltaic applications
• Enhanced fuse construction makes it ideal for constant temperature and current cycling withstand adding to system longevity
• 1000VDC rated

Product Highlights

The HP10M series is designed for the protection of photovoltaic systems.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: HP10M15
• Country of Origin: China

Technical Specifications

• Item number: HP10M15
• Description: Photovoltaic fuse gPV 1000VDC UL 15A With Ferrule For Clip
• EAN/UPC Code: 782001429959
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 15 A
• ROHS Compliant: Yes
• AC or DC: DC
• Fuse Class: Photovoltaic
• Speed/Characteristic: gPV
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product group: Special Purpose Fuses
• Body/Insulating Material: GMG
• Product Weight: 0.02 lb
• Mfr. #: HP10M15
• Mfr.: Mersen
• Country of Origin: China
• Category: Business & Industrial>Electrical Equipment & Supplies>Fuses>Fuses & Links
