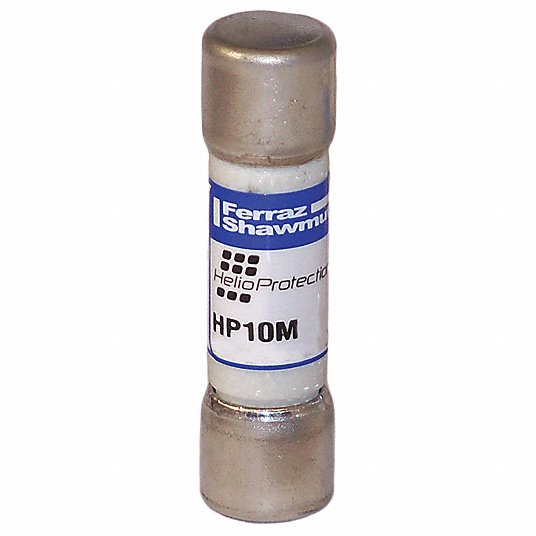

Mersen HP10M10 Solar Fuse, Fast Acting, 10 A, 1-1/2 inches L x 13/32 inches dia

Product Description

The MERSEN HP10M10 is a solar fuse engineered to protect photovoltaic applications. Its enhanced fuse construction makes it ideal for constant temperature and current cycling withstand adding to system longevity. The 1000VDC rated HP10M allows for safe circuit interruption under typical low fault current conditions produced by PV arrays.

• Engineered to protect photovoltaic applications
• Enhanced fuse construction
• Ideal for constant temperature and current cycling withstand

Product Highlights

Protect your off-grid or grid tied PV system from unexpected ground faults and line faults.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: HP10M10
• Country of Origin: Mexico

Technical Specifications

• Amps [Specifications]: 10 A
• Item [Specifications]: Solar Fuse
• Class [Specifications]: gPV
• Speed [Specifications]: Fast Acting
• Length [Specifications]: 1-1/2"
• Series [Specifications]: HP10M
• Element [Specifications]: Single
• Diameter [Specifications]: 13/32"
• Mounting [Specifications]: Clip
• Fuse Amps [Specifications]: 10A
• Fuse Size [Specifications]: 1-1/2" L x 13/32" dia
• Standards [Specifications]: CE, CSA Component Certified C22.2, IEC 60269-6 Approved, UL Listed to Standard UL2579 File E333668
• Body Style [Specifications]: Cylindrical
• Fuse Speed [Specifications]: Fast Acting
• Body Material [Specifications]: GMG
• Interrupt Rating [Specifications]: 10kA at 1000V DC
• AC Voltage Rating [Specifications]: Not Rated
• DC Voltage Rating [Specifications]: 1000V DC
• Equivalent Series [Specifications]: HP10M, PV-F, SPF, SPFS
• Visual Indication [Specifications]: Nonindicating
• In Line Fuseholder [Specifications]: NO
• Connection Material [Specifications]: Tin-Plated Copper
• Fuse Voltage Rating [Specifications]: 1000VDC
• Fits Fuse Block Style [Specifications]: Nonrejection
• Fuse Interrupt Rating [Specifications]: 10kA at 1000VDC
• Rejection / Nonrejection [Specifications]: Nonrejection
• Indicating / Nonindicating [Specifications]: Nonindicating
• Equivalent Brand and Series [Specifications]: Bussmann PV-F, Littelfuse SPF, Mersen HP10M, SPFS
• Green Environmental Attribute [Specifications]: RoHS 2011/65/EU Compliant
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 10 A
• ROHS Compliant: Yes
• AC or DC: DC
• Fuse Class: Photovoltaic
• Speed/Characteristic: gPV
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Current Rating: 10 A
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Interrupt Rating - DC: 10 kA
• Fuse Body Style: Cylindrical
• Fuse Class or Type: gPV
• Fuse Dia x Length: 13/32 in x 1-1/2 in
• Manufacturer: Mersen
• Manufacturer Part Number: Mersen HP10M10
• Unit Of Measure: Each
