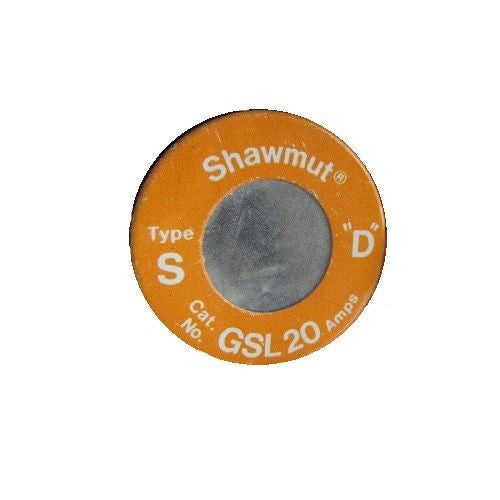

Mersen GSL20 Amp-Trap GSL20 Time Delay Low Voltage Plug Fuse, 20 A, 125 VAC

Product Description

The MERSEN GSL20 Amp-Trap® plug fuses are for industrial and residential applications. Standard non-time delay fuses are for receptacle and lighting circuits, while standard time delay fuses are for motor loads. Both fuses have low melting-point temperature elements. They are UL 248-11 and CSA certified.

• Brass contact
• Edison base plug body style
• Available in both time-delay and non time-delay

Product Highlights

Mersen plug fuses are suitable for industrial and residential applications, including receptacle and lighting circuits and motor loads.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GSL20

Technical Specifications

• Interrupt Rating: 10 kA
• Material: Glass
• Mounting Type: Threaded
• Series: GSL
• Type: Time Delay
• Voltage Rating: 125 VAC
• Application: Industrial and Residential Applications, Receptacle and Lighting Circuits
• Standard & Approvals: UL 248-11, File E76208 CSA Certified, Class 142301, File 15525
• Amperage Rating: 20 A
• Body Size: 1.126 in Dia x 1.29 in L
• Body Material: Plastic
• Brand: Mersen
• Breaking Capacity: 10 kA
• Contact Material: Brass
• Current Rating: 20 A
• Diameter: 1.56 in
• Manufacturer Part Number: GSL20
• Primary Type: Single Use Fuses
• Speed: Time Lag sec
• Standards: UL Listed to Standard 248-11, File E76208 CSA Certified, Class 142301, File 15525
• Termination: Plug-in
• Fuse Class: Plug
• Indicator: Visual Indicator
• Insulation Material: Glass
• Rated Voltage AC: 125 V
• Size: 1.126 x 1.29 Inches
• TC Connection: Screw In
• Terminal Material: Brass
• Terminal Type: Screw
• Voltage: 125 VAC
• Length: 1.29 Inch
• Mounting: Screw-In
• Response Time: Time-Delay
• Special Features: Available in both time-delay and non time-delay;For Canadian market, available in Type "P" and Type "D"
• Amperage: 20 Amp
