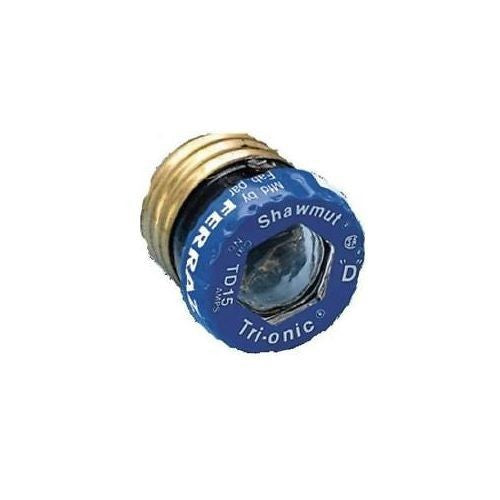

Mersen GSL15 Plug, Time Delay, Low Voltage UL/CSA Fuse, 15 Amps

Product Description

The Mersen GSL15 plug fuse is intended for industrial and residential applications. Non time-delay fuses are available for receptacle and lighting circuits, and time-delay fuses are available for motor loads. It is UL/CSA Listed and time delay and tamper-resistant. For Canadian requirements, a type "P" fuse is used for non-motor load.

• Available in both time-delay and non time-delay
• For Canadian market, available in Type "P" and Type "D"
• Time-delay

Product Highlights

This Mersen plug fuse is suitable for industrial and residential applications, including receptacle and lighting circuits, and motor loads. It is time-delay and tamper-resistant.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: GSL15

Technical Specifications

• Type: FUSES
• Fuse Types: LOW VOLTAGE
• Brand: Mersen
• MPN: GSL15
• Class: Plug
• Material: Screw In
• Mounting: Screw In
• Standard: CSA;UL
• Connection: Screw In
• Application: Industrial and residential;Receptacle and lighting circuits
• Interrupt Rating: 10 kA
• Special Features: Available in both time-delay and non time-delay;For Canadian market, available in Type "P" and Type "D"
• Stripped Catalog Number: GSL15
• Response Time: Time-Delay
• Voltage Rating: 125V
• Amperage Rating: 15 A
• Series: GSL
• Rated Voltage AC: 125VAC
• Rated Current: 15A
• Fuse Class: Plug
• Speed/Characteristic: Time Delay
• Short Circuit Current Rating (SCCR): 10kA
• Connection/Terminal Material: Brass
• Terminal Type: Screw Terminal
• Body/Insulating Material: Glass
• Height (mm): 29mm
• Width (mm): 29mm
• Depth (Length) (mm): 33mm
