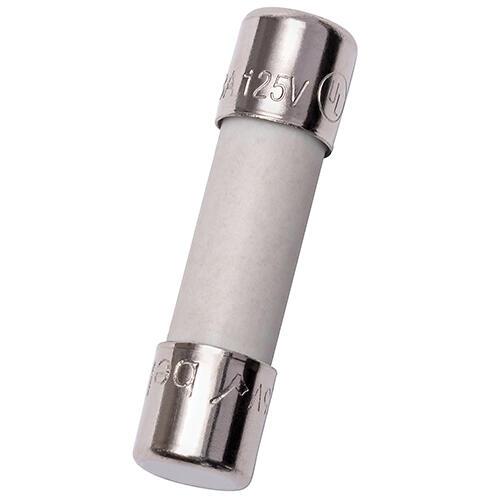

Mersen GSC6 Time Delay Miniature Fuse, 6 A, 125 VAC, 10 kA, Cylindrical Body

Product Description

The Mersen GSC6 is a time delay miniature fuse with a 6 A amperage rating and a 125 VAC voltage rating, capable of interrupting up to 10 kA. It features a cylindrical body and is suitable for electronic circuits. GSC-V fuses have 1-1/2 in wire lead each end with nickel-plated brass contacts.

• Time Delay fuse
• 125 VAC voltage rating
• Nickel-plated brass contact

Product Highlights

The Mersen GSC6 is ideal for protecting electronic circuits with its time delay functionality and robust construction.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GSC6
• Country of Origin: China

Technical Specifications

• Type: Time Delay
• Amperage Rating: 6 A
• Body Size: 5 mm Dia x 20 mm L
• Series: GSC
• Terminal Type: Ferrule
• Voltage Rating: 125 VAC
• Body Style: Cylindrical
• Material: Glass/Ceramic
• Interrupt Rating: 10 kA
• Application: Electronic Circuits
• Standard & Approvals: UL Listed, CSA 248-14, RoHS Compliant
• AC Voltage Rating: 125V
• Fuse Size: 5mm x 20mm
• Fuse Speed: Time Delay
• Body Material: Glass
• Physical Size: 5mm x 20mm
• Current Rating: 6 A
• AIC Ratings: 10kA@125V
• Manufacturer: Mersen
