Mersen GSB4/10 Miniature Fuse 0.4 A

Product Description

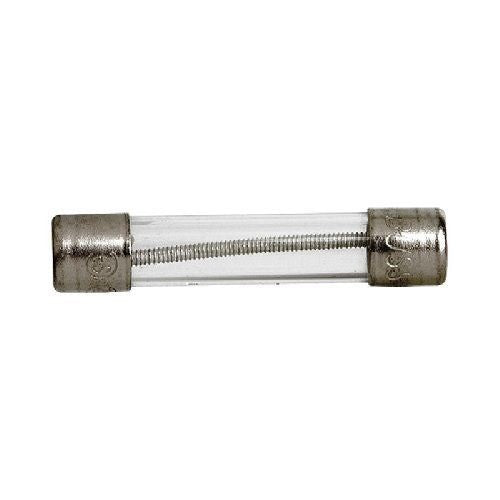

The MERSEN GSB4/10 is a fast-acting miniature fuse from the GSB series, designed for electronic circuits. Rated at 0.4 A and 250 VAC with a 0.035 kA interrupt capacity, this fuse provides reliable circuit protection. It features a cylindrical glass body and ferrule terminals for clip mounting.

• Fast Acting
• 0.035 kA Interrupt Rating
• Fuses have 1-1/2 in wire lead each end

Product Highlights

Miniature fast-acting fuse with a cylindrical body, ideal for protecting sensitive electronic circuits against overcurrent conditions.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GSB4/10
• Country of Origin: CN

Technical Specifications

• Series: GSB
• Material: Glass
• Body Size: 5 mm Dia x 20 mm L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC
• Amperage Rating: 0.4 A
• Interrupt Rating: 0.035 kA
• Rejection/Non-Rejection: Non-Rejection
• Type: Fast Acting
• Standard & Approvals: RoHS Compliant|CE Certified|UL Recognized|CSA Recognized|SEMKO Approved|BSI Approved|VDE Approved|IEC 127-2 Sheet 2|UL File No. JDYX E33925
• Application: For electronic circuits
