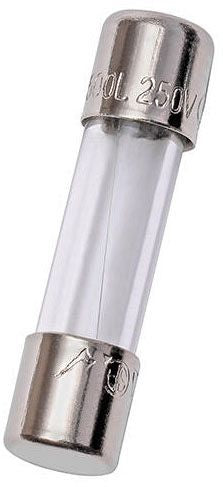

Mersen GSB1/2 FER Miniature Fuse Fast Acting 250 VAC 0.5 A

Product Description

The Mersen GSB1/2 is a fast acting miniature fuse designed for electronic circuit applications. It features a cylindrical body with a glass material that provides reliable performance. This fuse operates at a current rating of 0.5 A and a voltage rating of 250 VAC. It also has a 0.035 kA interrupting rating and uses a ferrule terminal with clip mounting for easy installation.

• Fast acting design suitable for electronic circuits
• Cylindrical body shape with glass material
• Voltage rating of 250 VAC and amperage rating of 0.5 A

Product Highlights

Ideal for use in electronic circuits, the Mersen GSB1/2 miniature fuse is made for dependable operation. It is RoHS compliant and has several important approvals including UL and CSA certification.

Product Information

Standard Information

• Brand: Mersen
• Catalog Number: GSB1/2

Technical Specifications

• Amperage Rating: 0.5 A
• Voltage Rating: 250 VAC
• Interrupting Rating: 0.035 kA
• Body Size: 5 mm diameter x 20 mm length
• Terminal Type: Ferrule
• Mounting Type: Clip
• Country of Origin: CN
• Rejection/Non-Rejection: Non-Rejection
