Mersen GSA20 GSA Series Fuse 20 A (1/4 in x 1 1/4 in)

Product Description

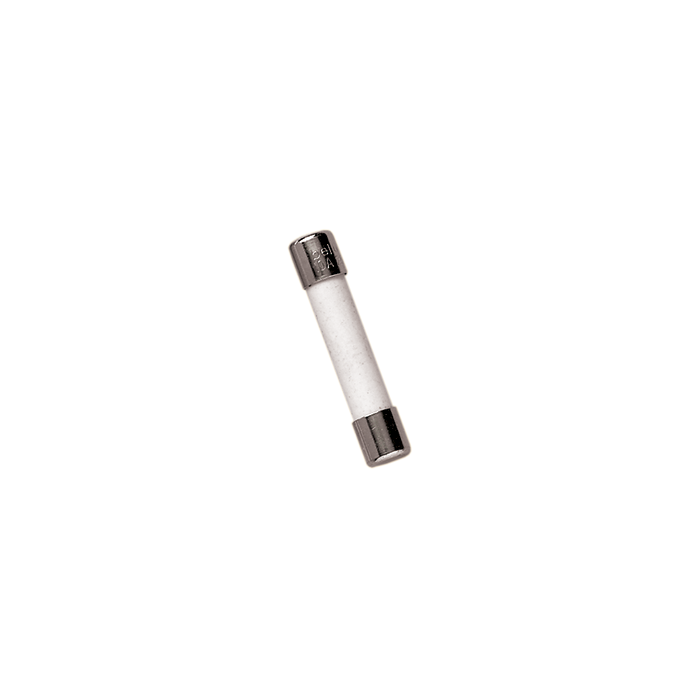

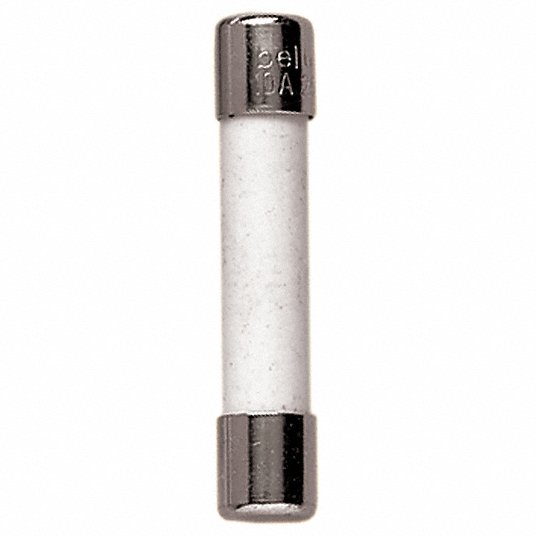

The MERSEN GSA20 is a miniature, time-delay fuse from the GSA series. This 20A, 250VAC fuse features a ceramic body and ferrule terminals for clip mounting. It provides single-element circuit protection with a 0.4kA interrupt rating. Ideal for protecting against brief spikes from motor starts or equipment startups.

• Nickel-plated brass contact
• Time Delay characteristics
• 1/4 in Dia x 1-1/4 in L Body Size

Product Highlights

Miniature, time-delay fuse with ceramic body and ferrule terminals, ideal for clip mounting.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GSA20
• Country of Origin: CN

Technical Specifications

• Series: GSA
• Element: Single
• Material: Ceramic
• Body Size: 1/4 in Dia x 1-1/4 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 0.4 kA
• Rejection/Non-Rejection: Non-Rejection
• Indicating/Non-Indicating: Non-Indicating
• Fuse Speed: Time Delay
• Size: 1/4" x 1 1/4"
• Interrupting Rating @ 250VAC: 400 AIC
• Interrupting Rating @ 125VAC: 10,000 AIC
• Fuse Size / Group: Midget
• Body Material: Ceramic
• Current Rating: 20 A
• Category: Circuit Protection
• Fuses: Fuses
• Voltage Rating - AC: 250 V
• Response Time: Slow Blow
• Package / Case: 3AB, 3AG, 1/4" x 1-1/4"
• Fuse Type: Cartridge
• Brand: MERSEN
• Equivalent Fuse Series: MDA | GSA
• Manufacturer Part Number: GSA20
• AC Voltage Rating: 250 V
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 1/4 in
• Overall Length: 1-1/4 in
• Speed: Time-Delay
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
