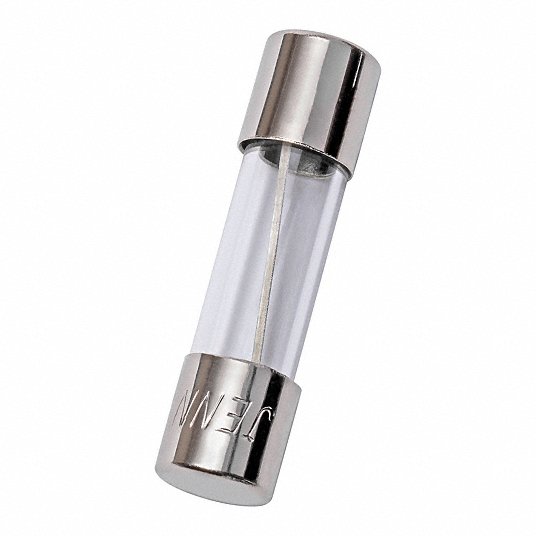

Mersen GGX6 Fuse: Ggx Series, Fast-Acting, 6 A, 125 V AC, 1/4 in x 1 in

Product Description

The MERSEN GGX6 is a fast-acting cylindrical fuse designed to protect current-sensitive equipment by quickly responding to changes in current. Its tube-shaped body and conductive metal caps allow for easy installation and removal from clip-style holders. It has an AC voltage rating of 125 V and an interrupt rating of 10 kA.

• Fast-Acting
• Miniature Fuse
• Cylindrical Body

Product Highlights

The MERSEN GGX6 fuse provides fast-acting protection in a compact cylindrical design, ideal for sensitive electronic equipment.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GGX6
• Country of Origin: Taiwan

Technical Specifications

• Brand: MERSEN
• Series: GGX
• Manufacturer Part Number: GGX6
• AC Voltage Rating: 125 V
• Body Material: Glass
• Current Rating: 6 A
• DC Voltage Rating: Not Rated
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 1/4 in
• Overall Length: 1 in
• Speed: Fast-Acting
• Standards: UL
• Visual Indication: Non-Indicating
• Body Size: 1/4 in Dia x 1 in L
• Body Type: Cylindrical
• Material: Glass
• Mounting Type: Clip
• Rejection/Non-Rejection: Non-Rejection
• Terminal Type: Ferrule
• Type: Fast Acting
• Voltage Rating: 125 VAC
