Mersen GGM7 Fuse: GGM Series, Fast-Acting, 7 A, 5.1 mm x 20.1 mm

Product Description

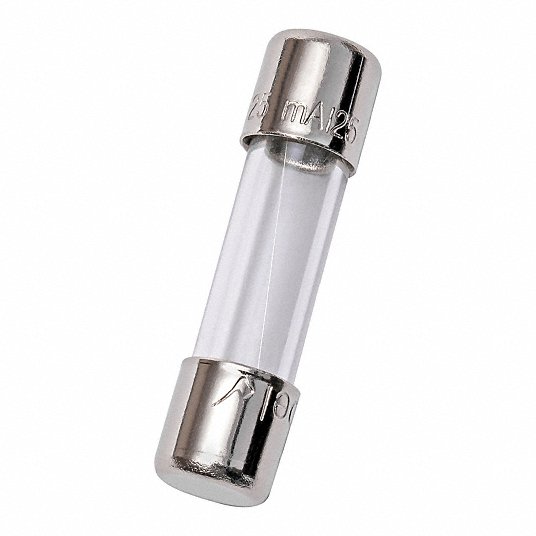

The MERSEN GGM7 is a fast-acting cylindrical fuse designed to protect current-sensitive equipment. These fuses respond rapidly to changes in current. The fuse features a tube-shaped body with conductive metal caps for easy installation and removal from clip-style holders.

• Fast-acting
• Cylindrical
• Sensitive current protection

Product Highlights

The MERSEN GGM7 fuse is fast-acting and ideal for protecting sensitive equipment. Its cylindrical design allows for easy installation.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GGM7
• Country of Origin: China (subject to change)

Technical Specifications

• Brand: MERSEN
• Series: GGM
• Manufacturer Part Number: GGM7
• AC Voltage Rating: 125 V
• Body Material: Glass
• Current Rating: 7 A
• DC Voltage Rating: Not Rated
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 5.1 mm
• Overall Length: 20.1 mm
• Speed: Fast-Acting
• Standards: RoHS
• Visual Indication: Non-Indicating
• Volts AC: 250
• Physical Size: 5mm x 20mm
• Alternate Mfr Part Number: C1037785
• Class: Supplemental
• Primary Type: Single Use Fuses
• Fuse Type: Fast Acting
• Fuse Class: Electronic/Glass
• Ampere Rating: 7 A
• Product Type: Fuses
• Volt Rating: 125V AC
• Diameter: 5 mm
• UL Approvals: Listed
• CSA Approval: Certified
• Body Type: Glass
• Mounting Type: Ferrule
• Category: Circuit Protection
• Fuses: Fuses
• Current Rating (Amps): 7 A
• Response Time: Fast Blow
• Packaging: Box
• Package / Case: 5mm x 20mm
• Part Status: Obsolete
• Breaking Capacity @ Rated Voltage: 10kA
• Approval Agency: CSA, UL, UR
• Size / Dimension: 0.197" Dia x 0.787" L (5.00mm x 20.00mm)
