Mersen GGM15 GGM fast acting miniature fuse 15 amp 250V 5 mm x 20 mm Y217555

Product Description

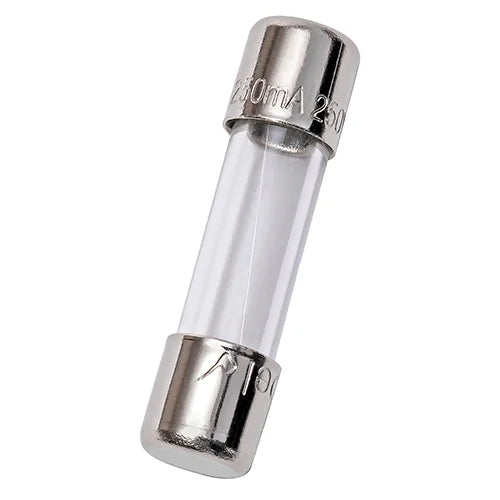

The MERSEN GGM15 is a fast-acting miniature fuse designed for overcurrent protection in electronic circuits. This glass-bodied fuse features a 15 A amperage rating and a 250 VAC voltage rating, with a 0.1 kA interrupt rating. It has a cylindrical body measuring 5 mm in diameter and 20 mm in length, utilizing a ferrule terminal and clip mount for installation.

• Features a nickel-plated brass contact for reliable conductivity.
• RoHS Compliant and UL Listed for safety and environmental standards.
• Designed with a cylindrical glass body for visual inspection of the fuse wire.

Product Highlights

This fast-acting fuse provides essential overcurrent protection for electronic circuits, ensuring safety and performance.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GGM15
• Country of Origin: China

Technical Specifications

• Product Type: FUSES
• Fuse Type: LOW VOLTAGE
• UNSPSC Code: 39121600
• Application: Electronic Circuits Applications
• Color: Clear
• Series: GGM
• Body Material: Glass
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating AC: 250 VAC
• Amperage Rating: 15 A
• Interrupt Rating: 0.1 kA
• Rejection/Non-Rejection: Non-Rejection
• Speed/Characteristic: Fast Acting
• Certifications: RoHS Compliant | UL Listed | CSA 248-14
• Country of Origin: China
• UPC: 782001768201
• GTIN: 00782001768201
• Voltage Type: AC
• Fuse Class: Supplemental
• Product Group: Miniature Fuses
• Alternate MPN: Y217555
• Primary Type: Single Use Fuses
• SKU: 278192
