Mersen GGC30 miniature fuse fast acting 30a 32vac 1/4 in dia x 1-1/4 in l

Product Description

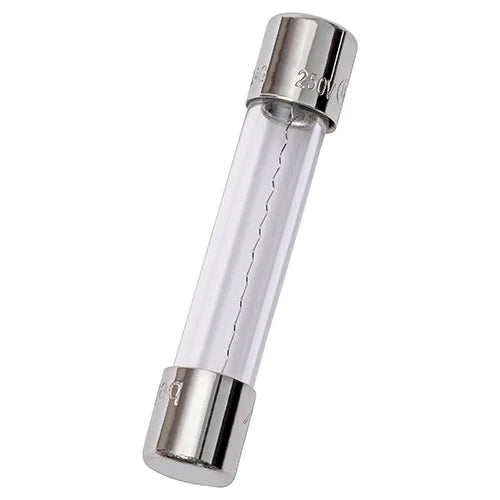

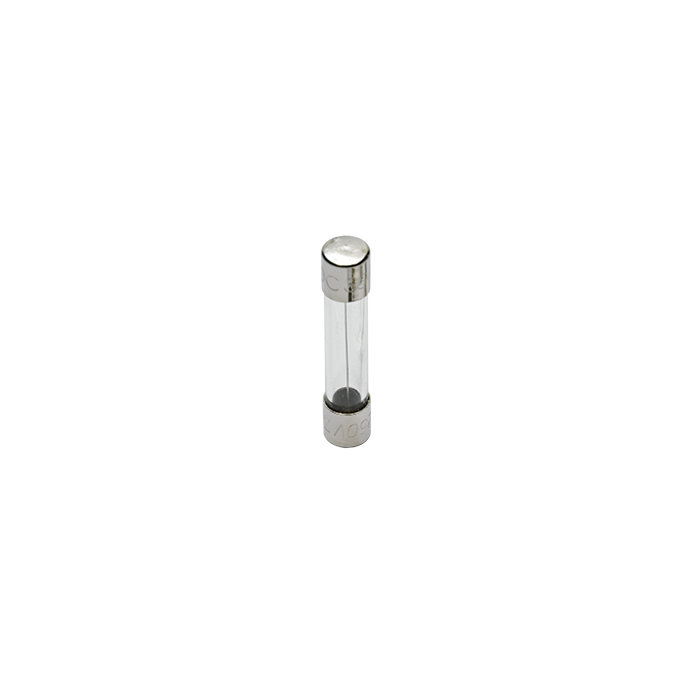

The MERSEN GGC30 is a fast-acting miniature fuse designed for electronic circuits. This non-indicating, non-rejection fuse features a 30 A amperage rating and a 32 VAC voltage rating, with a 1 kA interrupt capacity. It has a cylindrical glass body measuring 1/4 inch in diameter and 1-1/4 inches in length, utilizing a ferrule terminal and clip mount for installation.

• Features nickel-plated brass contacts for reliable conductivity.
• UL Listed and CSA certified for safety and quality assurance.
• RoHS Compliant, adhering to environmental standards.

Product Highlights

Ideal for protecting electronic circuits, this fuse offers reliable overcurrent protection in a compact, fast-acting design.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GGC30
• Country of Origin: CN

Technical Specifications

• Fuse Type: Fast Acting Miniature Cartridge
• Certifications: RoHS Compliant, UL Listed, CSA 248-14
• Application: Electronic Circuits
• Body Color: Clear
• Series: GGC
• Element Type: Single
• Body Material: Glass
• Dimensions: 1/4 in Dia x 1-1/4 in L
• Body Style: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 32 VAC
• Amperage Rating: 30 A
• Interrupting Rating: 1 kA
• Rejection Type: Non-Rejection
• Indication: Non-Indicating
• Current Type: AC
• Fuse Class: Supplemental
• Interrupting Rating (125VAC): 10,000 AIC
• Model: GGC30
• Package/Case: 3AB, 3AG, 1/4" x 1-1/4"
