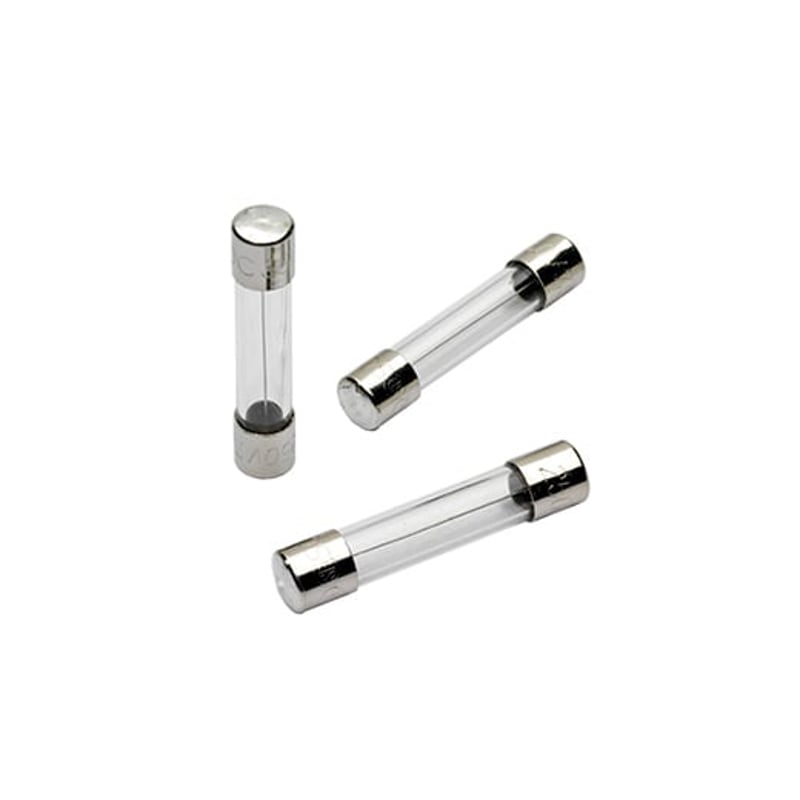

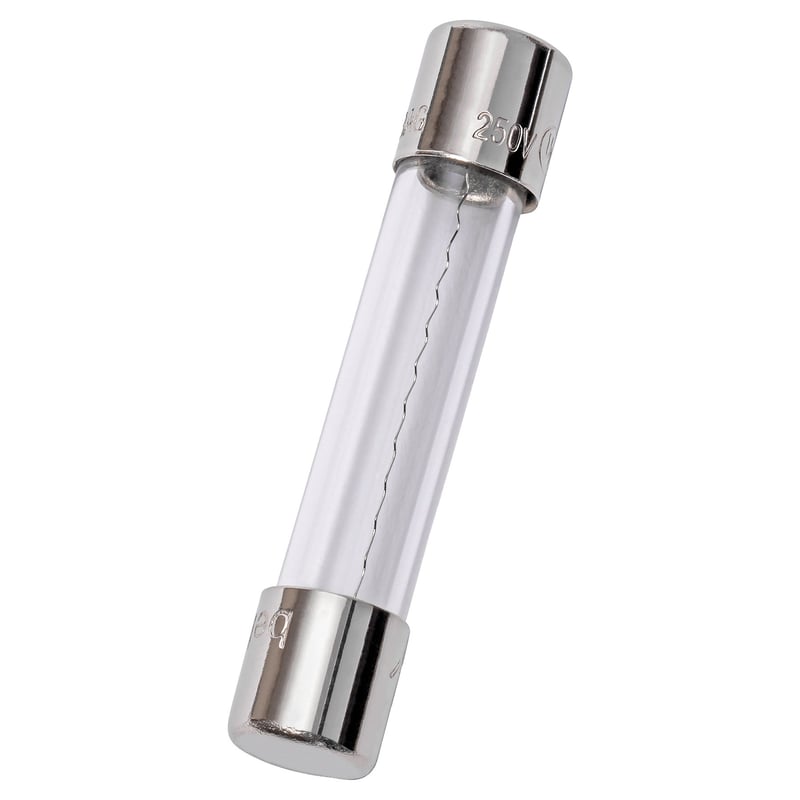

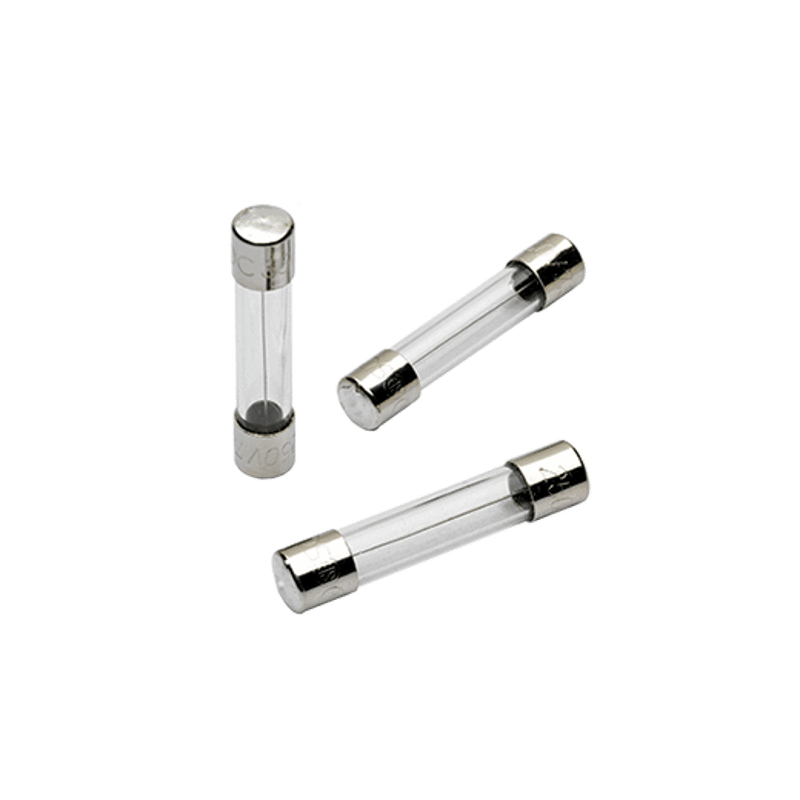

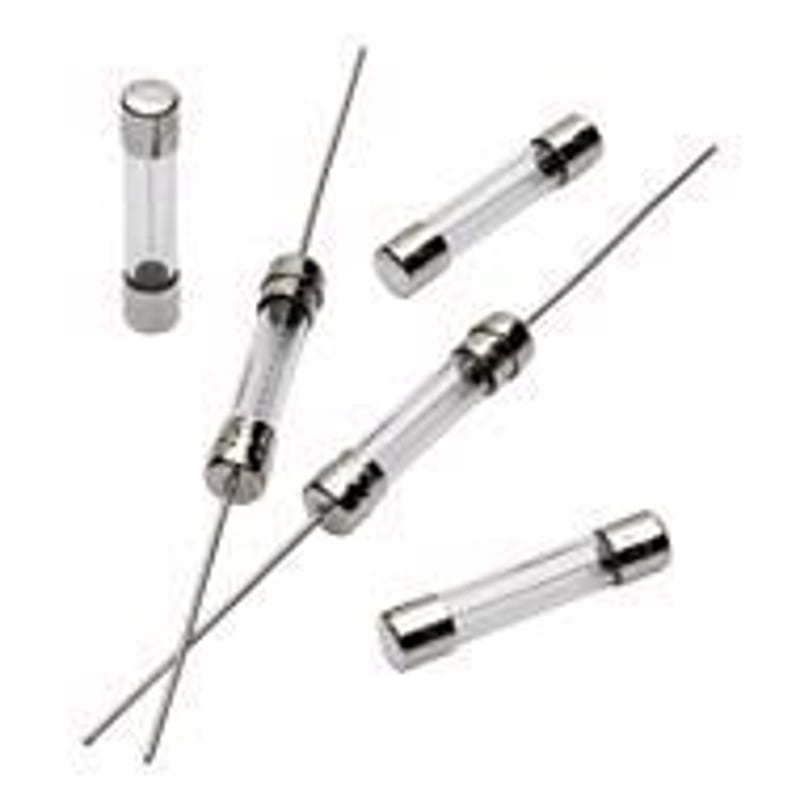

Mersen GGC10 Miniature Fuse Fast Acting 10 Amp 250 Volt GGC10

Product Description

The Mersen GGC10 is a miniature fuse designed for electronic circuits. This fast-acting fuse has a voltage rating of two hundred fifty volts and an amperage rating of ten amps. It is sized at one and a quarter inches by one quarter inch and features a ferrule connection.

• Voltage Rating: Two hundred fifty volts
• Amperage Rating: Ten amps
• Fast-acting response for immediate circuit protection

Product Highlights

This miniature fuse is ideal for protecting circuits in a variety of applications. Its compact size and efficient design make it suitable for tight spaces and high-performance environments.

Product Information

Standard Information

• Brand: Mersen
• MPN: GGC10

Technical Specifications

• Size: One and one quarter inches by one quarter inch
• Type: 6x32mm, 1/4 X 1-1/4
• Class: Supplemental
• Mounting: Clip
• Standard: UL Listed and CSA Certified
• Interrupt Rating: 0.2 kA
• Substitutes: 637419
• Application: Electronic circuits
