Mersen GGC10 Fast-Acting Glass Fuse 250V 10A 1/4 x 1 1/4 inch V1037640

Product Description

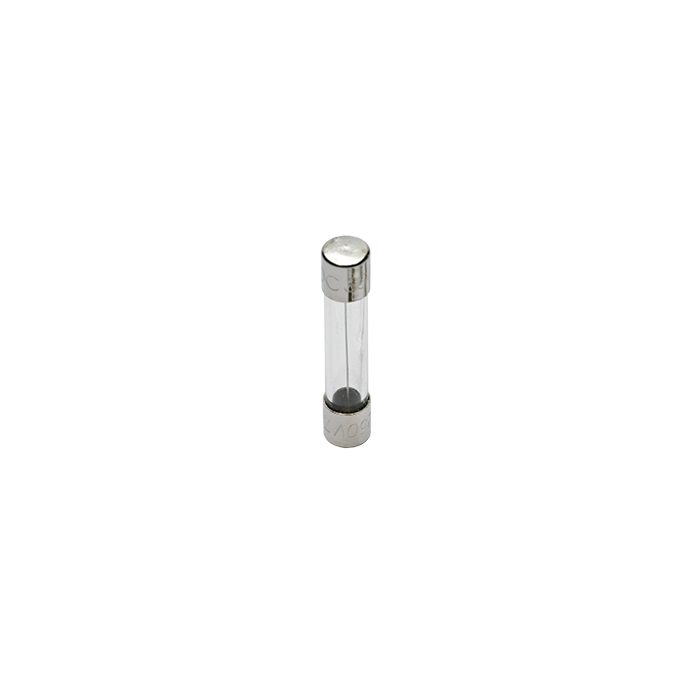

The MERSEN GGC10 is a fast-acting miniature fuse designed for electronic circuit protection. This glass-bodied fuse is rated for 250 VAC and 10 A, featuring a cylindrical body with a 1/4 inch diameter and 1-1/4 inch length. It utilizes a ferrule terminal and clip mounting for secure installation, providing reliable overcurrent protection in various applications.

• Provides fast-acting overcurrent protection for sensitive electronic circuits.
• Features a transparent glass body for easy visual inspection of the fuse element.
• Rated for 250 VAC and 10 A, with UL Listed and CSA Certified approvals.

Product Highlights

Fast-acting, glass body, 10A, 250V, 1/4" x 1 1/4" miniature fuse for electronic circuit protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GGC10
• Country of Origin: China

Technical Specifications

• UNSPSC Code: 39121600
• Application: Electronic Circuits Applications
• Series: GGC
• Element: Single
• Body Material: Glass
• Body Size: 1/4 in Dia x 1-1/4 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC
• Amperage Rating: 10 A
• Interrupting Rating (250VAC): 0.2 kA
• Rejection/Non-Rejection: Non-Rejection
• Indicating/Non-Indicating: Non-Indicating
• Standards: RoHS Compliant | UL Listed | CSA 248-14
• Fuse Class: Supplemental
• Fuse Speed: Fast-Acting
• AC or DC: AC
• Product Diameter: 0.25 in
• Product Length: 1.25 in
• Product group: Miniature Fuses
• Interrupting Rating (125VAC): 10 kA
• Certifications: UL Listed and CSA Certified @ 250VAC
• Alternate Part Number: V1037640
• Fuse Type: Fast Acting Miniature Fuse
• Voltage Class: Low Voltage
