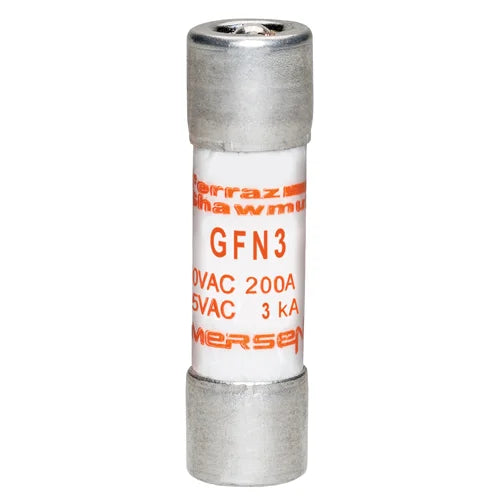

Mersen GFN3 Fuse 3 A (13/32 in Dia x 1-1/2 in L)

Product Description

The Mersen GFN3 is a midget indicating fuse available in 34 ratings from 1/10 A through 30 A. This time delay fuse has a built-in blown fuse indicator which pops out at the end of the fuse to visually indicate when the fuse has operated. It is designed for supplemental protection of circuits where time-delay and blown fuse indication are required.

• Pin indicator provides visual indication of open fuse or actuates switch for remote signaling
• 12 sec time-delay at 200% rating
• Can be used with UltraSafe™ fuse holders

Product Highlights

Mersen's GFN series fuse is ideal for protection of circuits with time-delay and blown fuse indication requirements.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: GFN3
• Country of Origin: Mexico

Technical Specifications

• Class: Midget
• Series: GFN
• Material: Poly Tube
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Response Time: 19 s
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC
• Amperage Rating: 3 A
• Interrupt Rating: 0.2 kA
• Rejection/Non-Rejection: Non-Rejection
• Indicating/Non-Indicating: Indicating
• Application: For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits
• Standard: UL Listed to standard 248-14 (1/10 to 15A) File E33925 CSA Certified to Standard C22.2 No. 248.14 (1/10 to 15A)
• Type of Indicators: Visual Indicator
• AC Voltage Rating: 250V
• Fuse Speed: Time Delay
• Body Material: Polytube
• Fuse Voltage Rating: 250V
• Termination: Cartridge
• Type: Cylindrical Fuses
• Contact Material: Tin-plated Copper
• Frequency (Hz): 50/60 Hz
• AC or DC: AC
• Fuse Class: Midget
• Indication System: Yes
• Indication System Type: Visual Indicator
• Connection/Terminal Material: Tin-Plated Copper
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product Weight: 0.012 lb
