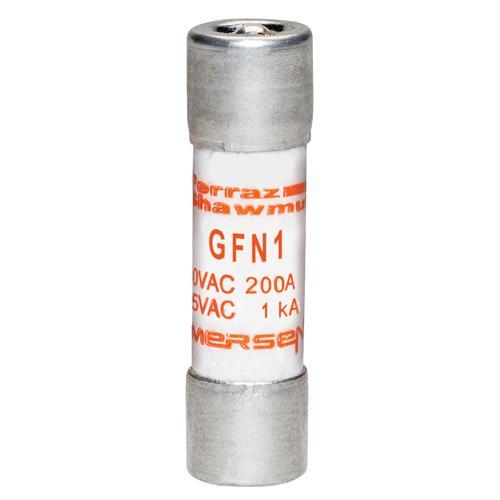

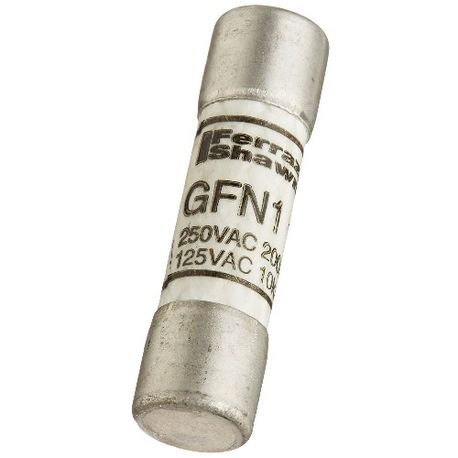

Mersen GFN1 Fuse GFN - Midget - Time-Delay 250VAC 1A Ferrule Visual Indicator

Brand: Mersen
SKU: GFN1
Availability: Out Of Stock
$24.40
$24.40
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Mersen GFN1 is a midget, time-delay fuse with a visual indicator. This 250VAC, 1A fuse features a ferrule connection and is designed for supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid or control circuits. It has a 0.2 kA interrupt rating.

  • Pin indicator provides visual indication of open fuse
  • 12 second time-delay at 200% rating
  • UL Listed to standard 248-14 and CSA Certified to Standard C22.2 No. 248.14

Product Highlights

Mersen's GFN1 fuse provides reliable time-delay protection with visual blown fuse indication for various applications. Its compact size and ferrule connection make it easy to install.

Product Information

Standard Information

  • Brand: Mersen
  • Manufacturer Part Number: GFN1
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
GFN1
Manufacturer
Mersen
Brand
Mersen
Country of Origin
Mexico
Made in USA
No
Amperage Rating
1 A
Application
For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits.
Connection
Ferrule
Interrupt Rating
0.2 kA
Mounting
Clip
Special Features
Pin indicator provides visual indication of open fuse or actuates switch for remote signaling Numerous ratings for a wide variety of applications 12 second time-delay at 200 rating Can be used with UltraSafe™ fuse holders (1/10 - 10A) 1 1/2" x 13/32" (10 mm x 38 mm) dimensions
Standard
UL Listed to standard 248-14 (1/10 to 15A) File E33925 CSA Certified to Standard C22.2 No. 248.14 (1/10 to 15A)
Item Type
Midget Fuses
Size
1.5 x 0.41
Type of Indicators
Visual Indicator
Voltage Rating
250 VAC
Type
Time Delay
Series
GFN
Terminal Type
Ferrule
Body Style
Cylindrical
Response Time
60 sec
Class
Midget
Body Size
13/32 in Dia x 1-1/2 in L
Material
Poly
Vendor SKU
GFN1
UNSPSC
39121609
Standard & Approvals
UL File No. E33925, C22.2 No. 248.14
Fuse Amps
1A
Fuse Size
1-1/2" x 13/32"
Fuse Speed
Time Delay
Body Material
Polytube
AC Voltage Rating
250V
Visual Indication
Indicating
Fuse Voltage Rating
250V
Rated voltage AC UL
250 V
Frequency (Hz)
50/60 Hz
AC or DC
AC
Fuse Class
Midget
Speed/Characteristic
Time Delay
Indication System
Yes
Indication System Type
Visual Indicator
Connection/Terminal Material
Tin-Plated Copper
Product Diameter
0.41 in
Product Length
1.5 in
Product group
Low Voltage UL/CSA Fuses
Body/Insulating Material
PolyTube
Product Weight
0.012 lb
Amp
1
Volt
250
Category
Fuses
AIC Ratings
200kA@250V
Physical Size
13/32" x 1 1/2"
Time Delay at 200% Rating
12 Second
Fuse Holder
UltraSafe™ Fuse Holder
Branch Circuit Protection
Not for Branch Circuit Protection
UL Listed
Standard 248-14 (File: E33925)
CSA Certified
Standard C22.2 No. 248.14
Amperage
1 Amp
