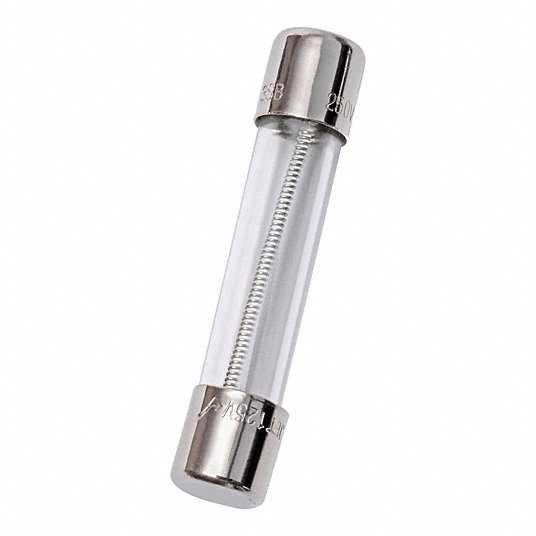

Mersen GDL7/10 miniature fuse 0.7 A 250 VAC 1/4 in Dia x 1-1/4 in L

Product Description

The MERSEN GDL7/10 is a miniature time delay fuse designed for circuit protection. It features a 0.7 A amperage rating and a 250 VAC voltage rating, with a non-rejection ferrule terminal. The cylindrical glass body measures 1/4 inch in diameter and 1-1/4 inches in length, suitable for clip mounting. This fuse provides a 0.035 kA interrupt rating, making it ideal for applications requiring tolerance to brief current spikes.

• 0.035 kA at 250 VAC interrupt rating
• Time Delay characteristic
• Glass body with 1/4 inch Dia x 1-1/4 inch L dimensions

Product Highlights

This MERSEN GDL7/10 miniature time delay fuse offers reliable overcurrent protection for electronic circuits, tolerating brief current spikes.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GDL7/10
• Country of Origin: CN

Technical Specifications

• Type: Time Delay
• Series: GDL
• Material: Glass
• Body Size: 1/4 in Dia x 1-1/4 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC
• Amperage Rating: 0.7 A
• Interrupt Rating: 0.035 kA
• Rejection/Non-Rejection: Non-Rejection
• Interrupt Rating (125VAC): 10,000 AIC
• Certifications: UL Listed, CSA Certified
• Equivalent Fuse Series: GDL & MDL
• DC Voltage Rating: Not Rated
• Visual Indication: Non-Indicating
• Fuse Class: Supplemental
• RoHS Compliant: Yes
