Mersen GDG4 fuse 250V 4A 5x20mm

Product Description

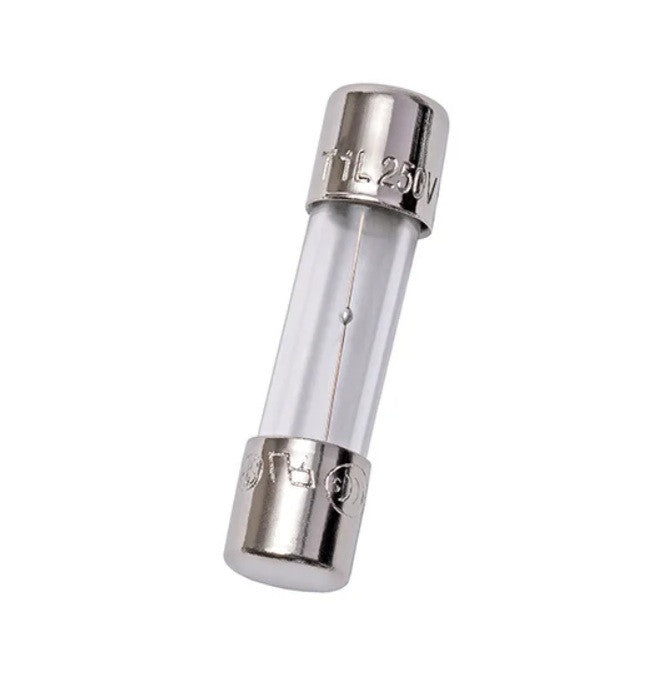

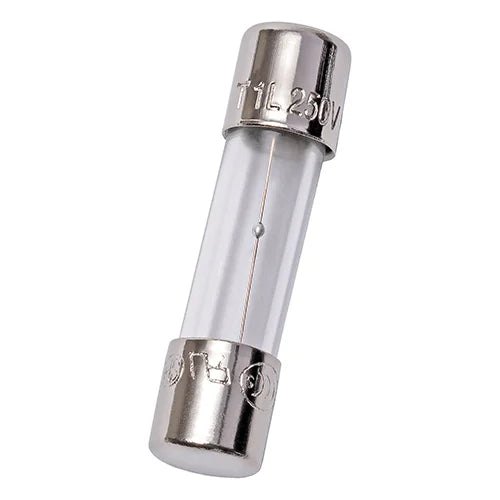

The MERSEN GDG4 is a 250V 4A 5X20MM supplemental fuse. This time-delay fuse has a glass body and ferrule connection. It is suitable for various applications requiring circuit protection. It has approvals from UL, CSA, SEMKO, and VDE.

• 250V
• Time Delay
• Glass
• 5mm x 20mm

Product Highlights

The MERSEN GDG4 is a 250V, 4A, time-delay fuse with a glass body and ferrule connection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GDG4

Technical Specifications

• Manufacturer: Mersen
• Brand: Mersen
• MPN: GDG4
• Product Type: FUSE
• Rated voltage AC UL: 250 V
• Ampere Rating: 4 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Supplemental
• Speed/Characteristic: Time Delay
• Fuse Size: 5x20
• Mounting: Clip
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.2 in
• Product Length: 0.79 in
• Amps: 4
• Volts AC: 250
• Body: Glass
• Fuse Speed: Time Delay
• Physical Size: 5mm x 20mm
• Interrupting Rating: 40 AIC @ 250VAC
• Approvals: UL & CSA Recognized, SEMKO and VDE Approved
• Standard: IEC 127-2 Standart Sheet 3
• UNSPSC Code: 39120000
• Current Rating: 4 A
• Dimensions: 0.20 in H X 0.20 in W X 0.79 in L
• Series: GDG Series
• Speed: Time Delay sec
• Terminal Type: Ferrule
• Voltage Rating: 250 V
• Fuse Type: Cartridge, Glass
• Volt Rating: 250 V ac
• Overall Length: 20.10 mm
• Diameter: 5 mm
• UL Approvals: Recognized
• IEC Approval: Iec 127-2
• Body Type: Glass
• Mounting Type: Ferrule
• Voltage: 250v
• Category: Circuit Protection
• Fuses: Fuses
• Current Rating (Amps): 4 A
• Voltage Rating - AC: 250 V
• Response Time: Slow Blow
• Package / Case: 5mm x 20mm
• Part Status: Active
• Breaking Capacity @ Rated Voltage: 40A
• Approval Agency: CSA, UR
• Size / Dimension: 0.197" Dia x 0.787" L (5.00mm x 20.00mm)
