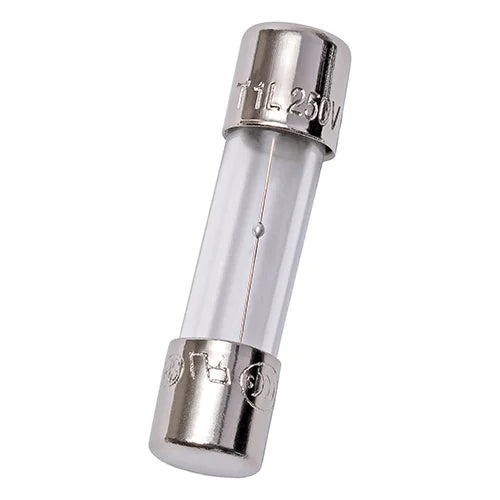

Mersen GDG2-1/2 miniature fuse GDG - time-delay 250vac 2.5a 5x20 ferrule

Product Description

The MERSEN GDG2-1/2 is a miniature time-delay fuse designed for circuit protection. This GDG series fuse is rated for 250VAC and 2.5A, featuring a 5x20mm ferrule connection. Constructed with a glass body, it provides reliable overcurrent protection with a time-delay characteristic. It is suitable for applications requiring a small dimension fuse.

• Time-delay characteristic for controlled circuit protection.
• Rated for 250VAC and 2.5A current.
• Features a 5x20mm ferrule size and glass body construction.

Product Highlights

Miniature time-delay fuse with 250VAC, 2.5A rating, and 5x20mm glass ferrule design.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GDG2-1/2
• Country of Origin: China

Technical Specifications

• MPN: GDG2-1/2
• Brand: Mersen
• UPC: 782001764449
• Current Rating: 2.5A
• Product Type: Miniature Fuses
• Characteristic: Time Delay sec
• Series: GDG Series
• Diameter: 0.2 in
• Mounting Type: Clip
• Fuse Size: 5mm x 20mm
• Body Material: Glass Tube
• Connection Type: Ferrule
• Voltage Rating: 250V
• RoHS Compliant: Yes
• Voltage Type: AC
• Fuse Class: Supplemental
• Length: 0.79 in
• Interrupting Rating: 35 AIC @ 250VAC
• Certifications: UL & CSA Recognized, SEMKO and VDE Approved
• Standard: IEC 127-2 Standard Sheet 3
