Mersen GDG1 miniature fuse time delay glass 250V 1 amp 5mm x 20mm

Product Description

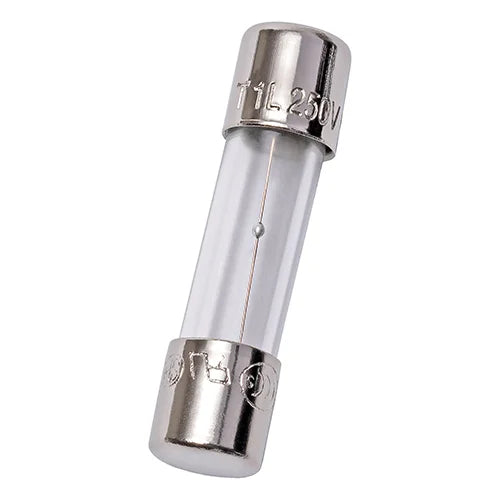

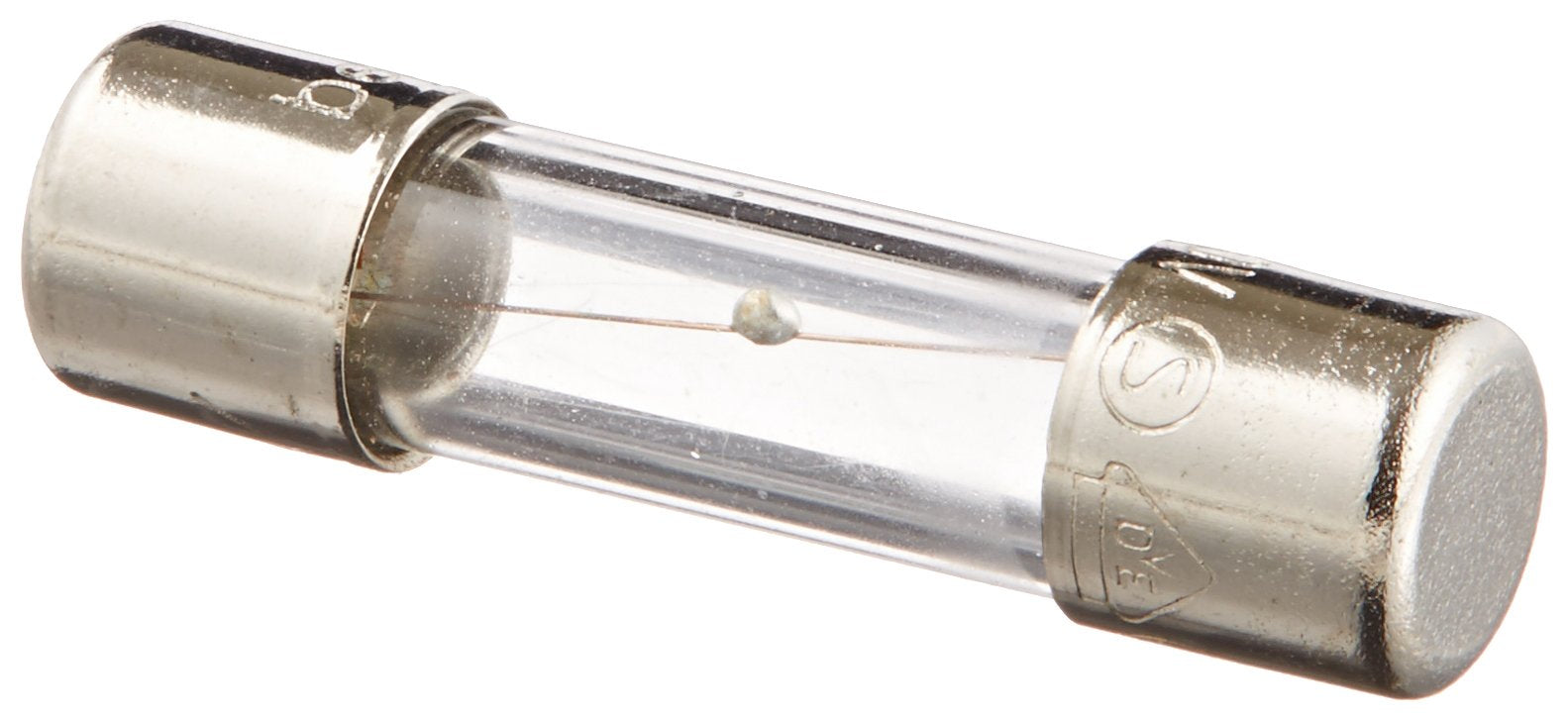

The MERSEN GDG1 is a miniature time-delay fuse designed for circuit protection. This glass-bodied fuse operates at 250 VAC with a 1 Ampere rating and a 0.035 kA interrupt rating. Measuring 5mm in diameter and 20mm in length, it features a cylindrical body and ferrule terminals for clip mounting. It is suitable for various electronic applications requiring reliable overcurrent protection.

• Time-delay characteristic for managing temporary overcurrents.
• Glass body construction with 5mm diameter x 20mm length.
• Rated for 250 VAC and 1 Ampere, with a 0.035 kA interrupt rating.

Product Highlights

UL recognized, CSA certified, and RoHS compliant for safety and environmental standards.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GDG1
• Country of Origin: China

Technical Specifications

• Fuse Type: FUSES
• Fuse Type Category: LOW VOLTAGE
• Color: Clear
• Series: GDG
• Body Material: Glass
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Rated Voltage AC UL: 250 V
• Amperage Rating: 1 A
• Interrupt Rating: 0.035 kA
• Rejection/Non-Rejection: Non-Rejection
• Product Type: FUSE
• Characteristic: Time Delay
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Supplemental
