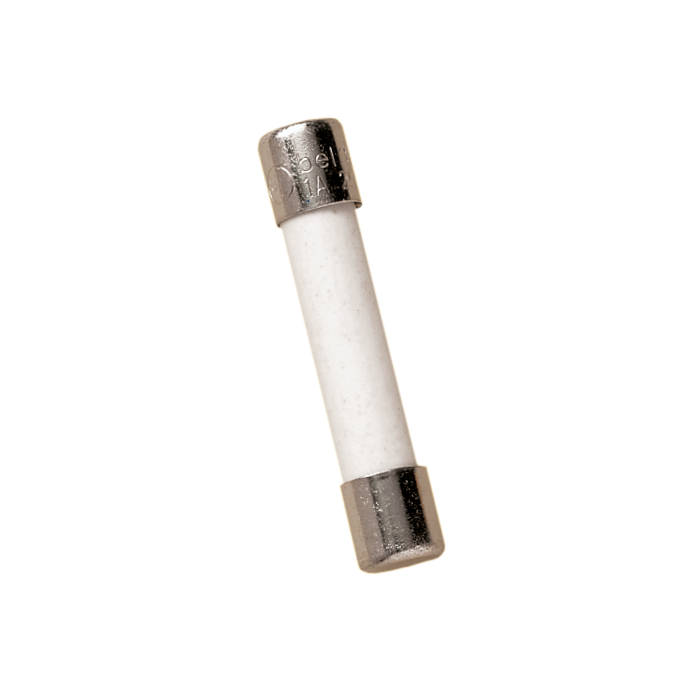

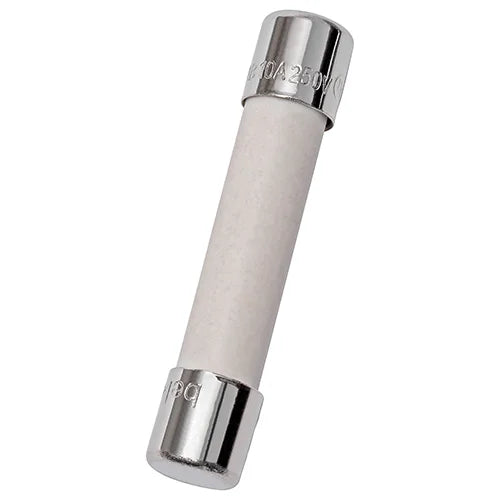

Mersen GAB7 Miniature Fuse GAB - Fast-Acting 250VAC 7A Size 6,3x32 Ferrule

Product Description

The MERSEN GAB7 is a miniature, fast-acting fuse designed for circuit protection. Rated up to 250V, this ceramic fuse has a 7A amperage rating and a ferrule connection type. It is UL Listed and CSA Certified. Ideal for use with 3AB, 3AG, 1/4" x 1-1/4" fuse holders.

• Up to 250V
• Fast-Acting
• Ceramic
• 1/4 x 1-1/4

Product Highlights

Miniature fast-acting fuse with ceramic body and ferrule connection. Offers reliable circuit protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GAB7

Technical Specifications

• Item number: GAB7
• Description: Miniature fuse GAB - Fast-Acting 250VAC 7A Size 6,3x32 Ferrule
• Rated voltage AC UL: 250 V
• Ampere Rating: 7 A
• AC or DC: AC
• Fuse Class: Supplemental
• Speed/Characteristic: Fast-Acting
• Fuse Size: 6.3x32
• Mounting Type: Clip
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.25 in
• Product Length: 1.25 in
• Product group: Miniature Fuses
• Body/Insulating Material: Ceramic
• Amperage: 7 A
• Voltage: 250V
• Body Material: Ceramic
• Approvals: UL Listed and CSA Certified
• Size: 1/4" x 1 1/4"
• Interrupting Rating @ 250VAC: 200 AIC
• Interrupting Rating @ 125VAC: 10,000 AIC
• Brand: Mersen
• Current Rating: 7 A
• For Use With: Fuses
• Manufacturer Part Number: GAB7
• Primary Type: Fuse
• Series: GAB Series
• Speed: Fast Acting sec
• Type: Fast Acting
• Voltage Rating: 250 V
• Amperage Rating: 7 A
• Body Size: 1/4 in Dia x 1-1/4 in L
• Body Type: Cylindrical
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 0.2 kA
• Material: Ceramic
• Rejection/Non-Rejection: Non-Rejection
• Category: Circuit Protection
• Fuses: Fuses
• Current Rating (Amps): 7 A
• Voltage Rating - AC: 250 V
• Response Time: Fast Blow
• Package / Case: 3AB, 3AG, 1/4" x 1-1/4"
• Part Status: Active
• Breaking Capacity @ Rated Voltage: 200A
• Mounting: Requires Holder
• Approval Agency: CSA, UL, UR
• Fuse Type: Cartridge, Ceramic
• Size / Dimension: 0.250" Dia x 1.252" L (6.35mm x 31.80mm)
