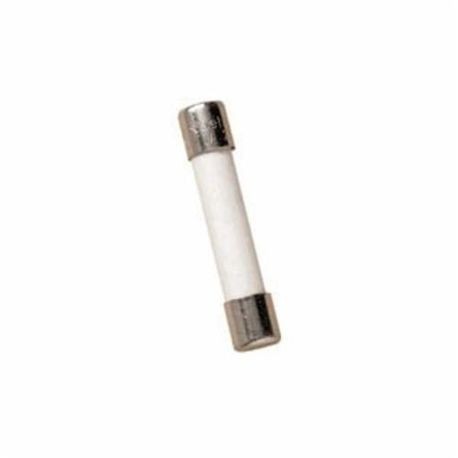

Mersen GAB15 Miniature Fast-Acting Ceramic Fuse 250VAC 15A

Product Description

The Mersen GAB15 fuse features a ceramic body designed for fast-acting response, suitable for 250 VAC applications and rated at 15 Amps. Ideal for protecting electronic circuits, it meets rigorous standards including UL Listed and CSA Certified, ensuring optimal safety and reliability.

• Highly responsive fast-acting fuse mechanism.
• Compact size of 1/4 inch diameter by 1-1/4 inches length.
• Engineered with nickel-plated brass contacts for enhanced durability.

Product Highlights

This miniature fuse is constructed from robust ceramic material, providing excellent heat resistance and ensuring stable performance in demanding environments. Its cylindrical body and ferrule mounting type make it easy to install in a wide range of electrical systems.

Product Information

Standard Information

• Brand: Mersen
• MPN: GAB15

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 250 VAC
• Interrupt Rating: 0.75 kA
• Body Size: 1/4 in Dia x 1-1/4 in L
• Body Material: Ceramic
• Mounting Type: Clip
• Terminal Type: Ferrule
• Standard & Approvals: UL Listed, CSA Certified, RoHS Compliant
