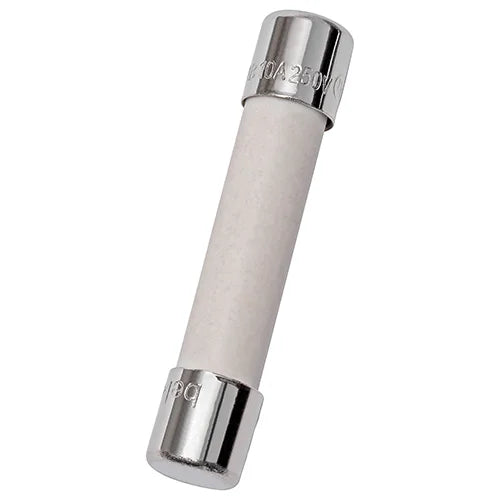

Mersen GAB1 fer 1A 250VAC 1/4 in dia x 1-1/4 in L

Product Description

The MERSEN GAB1 is a fast-acting miniature fuse designed for circuit protection in various electrical and electronic applications. This non-indicating, non-rejection fuse features a 1 A, 250 VAC rating and a 0.035 kA interrupt capacity. It utilizes a ferrule terminal for clip mounting and has a cylindrical ceramic body, measuring 1/4 inch in diameter and 1-1/4 inches in length, with a single element construction.

• Features a nickel-plated brass contact for reliable conductivity.
• Fast-acting characteristic ensures rapid circuit interruption for protection.
• Cylindrical ceramic body with ferrule terminals designed for clip mounting.

Product Highlights

Fast-acting miniature fuse with ceramic body, 1A 250VAC rating, and ferrule terminals for reliable circuit protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GAB1
• Country of Origin: CN

Technical Specifications

• Series: GAB
• Element Type: Single
• Body Material: Ceramic
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC
• Current Rating: 1 A
• Interrupt Rating: 0.035 kA
• Rejection Type: Non-Rejection
• Indicating Type: Non-Indicating
• Fuse Type: Miniature GAB
• Action: Fast-Acting
• AC or DC: AC
• Fuse Class: Supplemental
• Product Diameter: 0.25 in
• Product Length: 1.25 in
• Specification Met: CSA
