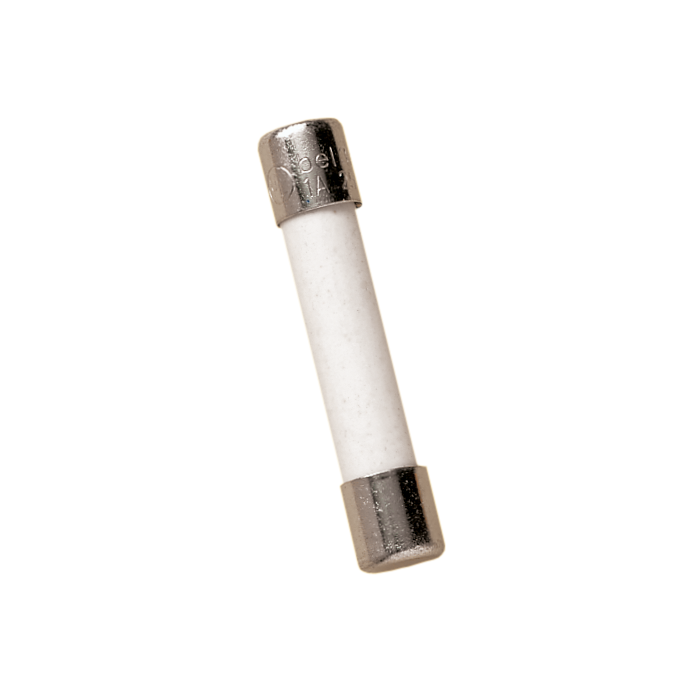

Mersen GAB1/2 Miniature Fuse GAB - Fast-Acting 250VAC 0.5A 6,3x32 Ferrule

Product Description

The Mersen GAB1/2 is a miniature, fast-acting fuse with a voltage rating of 250VAC and a current rating of 0.5A. It features a 6,3x32 ferrule and is suitable for electronic circuits. This ceramic electronic fuse is UL listed and CSA certified.

• Fast-acting
• 0.5 ampere rating
• UL listed and CSA certified

Product Highlights

The Mersen GAB1/2 miniature fuse provides reliable circuit protection with its fast-acting design and compliance with industry standards.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GAB1/2
• Country of Origin: China

Technical Specifications

• Catalog Number: GAB1/2
• Manufacturer: Mersen
• Brand: Mersen
• Country of Origin: China
• Made in USA: No
• UPC: 782001760045
• GTIN: 00782001760045
• Voltage: 250 Volts AC
• Amperage: 1/2 Amps
• Diameter: 1/4"
• Length: 1-1/4"
• Interrupting Rating: 35A/10kA
• Fuse Type: Ceramic Electronic Fuse
• Acting Type: Fast-acting
• Element: Single
• Body Size: 1/4 in Dia x 1-1/4 in L
• Amperage Rating: 0.5 A
• Series: GAB
• Body Style: Cylindrical
• Material: Ceramic
• Terminal Type: Ferrule
• Type: Fast Acting
• Mounting Type: Clip
• Voltage Rating: 250 VAC
• UNSPSC: 39121609
• Standard & Approvals: UL Listed, CSA Certified, RoHS Compliant
• Application: Electronic Circuits
• Features & Benefits: Nickel-plated brass contact
• Physical Size: 1/4" x 1 1/4"
• Interrupting Rating @ 250VAC: 35 AIC
• Interrupting Rating @ 125VAC: 10,000 AIC
• Body Material: Ceramic
• Speed/Characteristic: Fast Acting
• Approvals: UL Listed and CSA Certified
