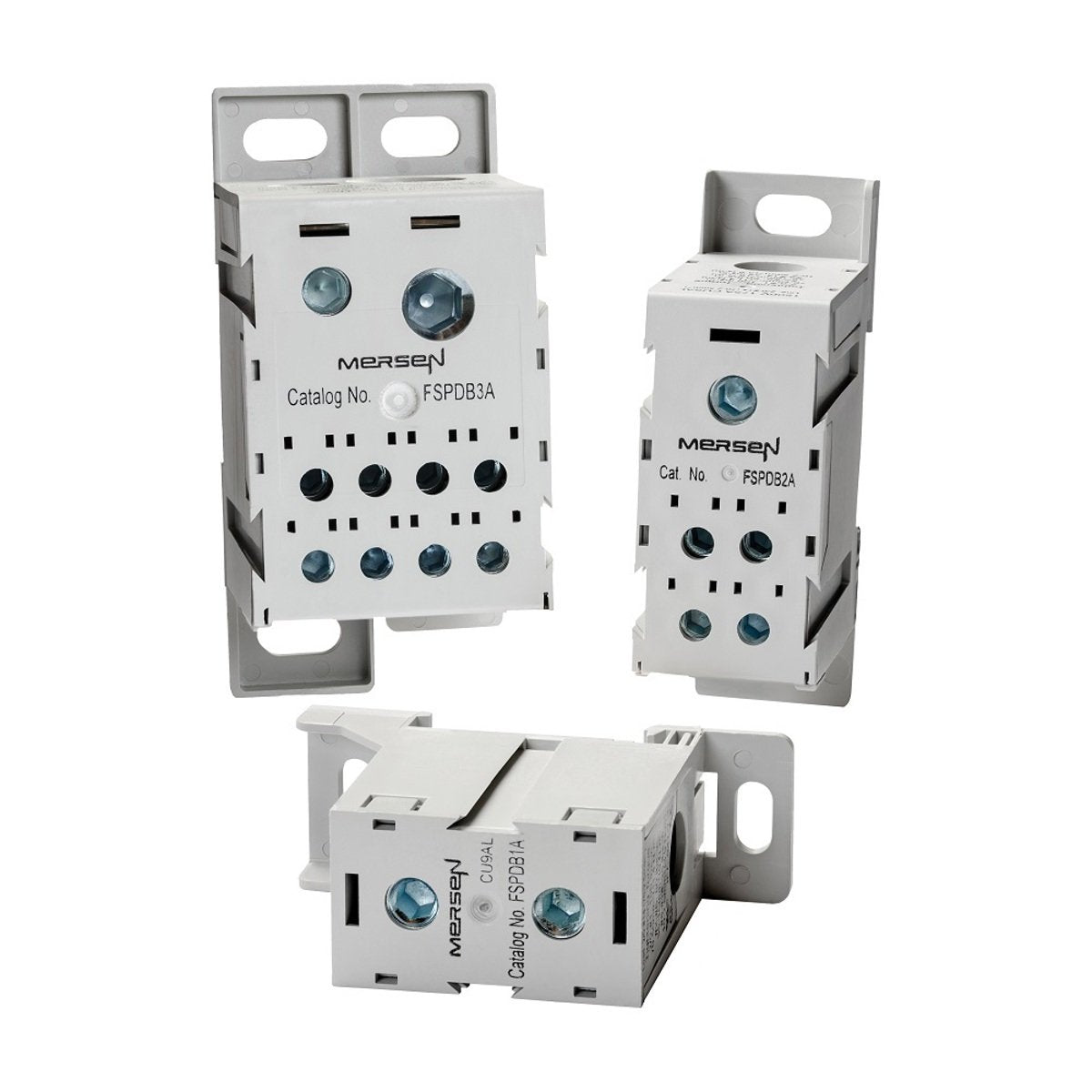

Mersen FSPDB5A FER Finger Safe Power Distribution Block 600 VAC 840 A 1 Pole

Product Description

The Mersen FSPDB5A is a finger safe power distribution block designed for secure electrical connections. This model operates at 600 volts AC and provides a current rating of 840 amperes. Designed for efficiency and safety, it features one pole and accommodates wire sizes from four AWG to six hundred kcmil.

• Finger-safe design enhances electrical safety and protects users.
• Quick installation on 35 mm DIN rail with snap-on feature.
• Modular design allows flexibility in pole configurations.

Product Highlights

This power distribution block enables safe splicing of cables and the splitting of primary power into multiple secondary circuits. Its modular setup provides an efficient junction for electrical installations.

Product Information

Standard Information

• Brand: Mersen
• MPN: FSPDB5A

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 840 A
• Number of Poles: 1
• Primary Connections per Pole: 2
• Secondary Connections per Pole: 2
• Wire Size: 4 AWG to 600 kcmil
• Short Circuit Current Rating: 100 kA
• Material: Tin-plated Aluminum
• Country of Origin: Mexico
• Dimensions: 5.71 in H x 2.84 in W x 3.15 in D
