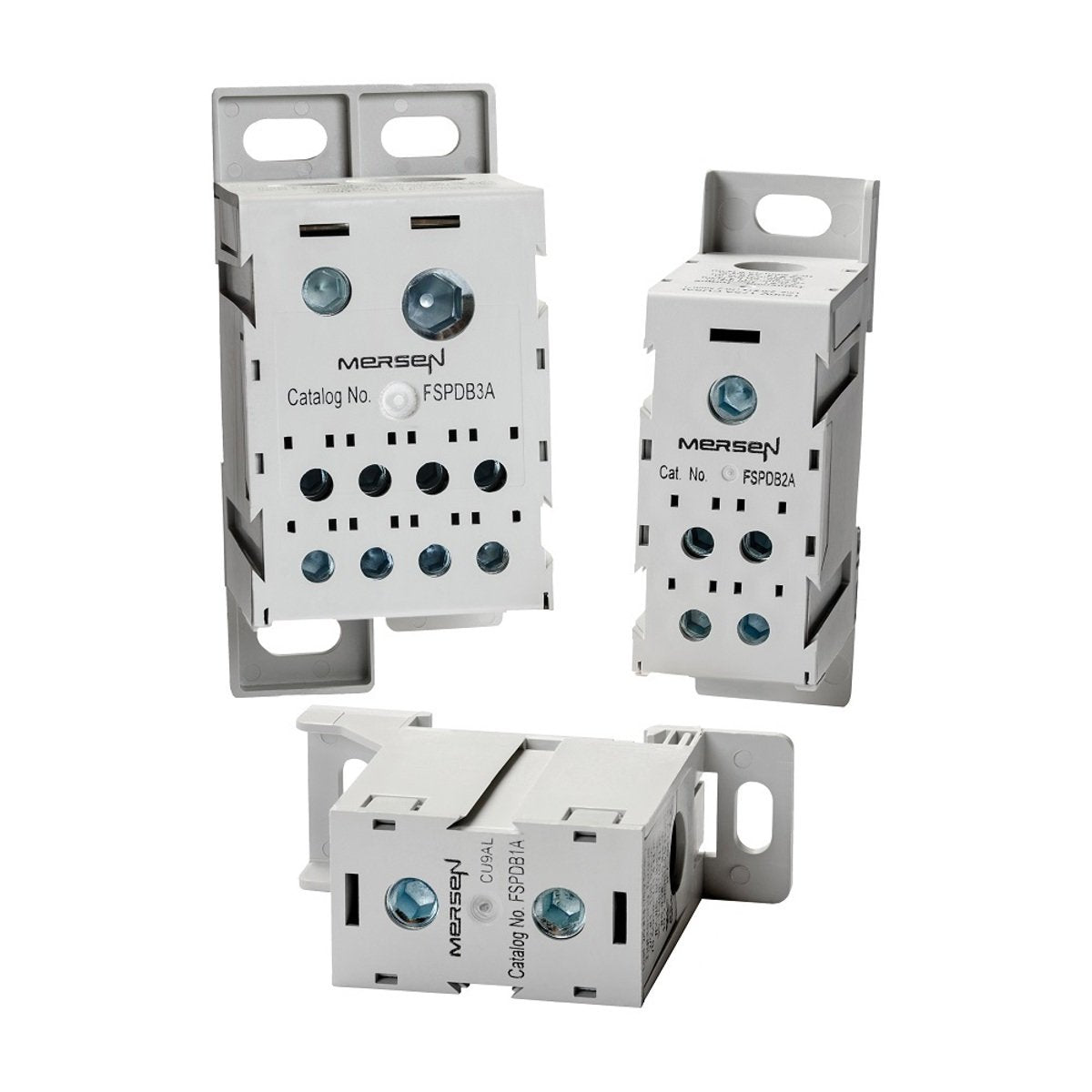

Mersen FSPDB3C FER Power Distribution Block 600 VAC 310 A 1 Pole 14 to 2/0 AWG

Product Description

The Mersen FSPDB3C is a finger-safe power distribution block designed for safety and ease of installation. The block operates at 600 VAC and has a current rating of 310 A. It accommodates different wire sizes from fourteen to two/ought American Wire Gauge (AWG) and six AWG to three hundred fifty kcmil. This power distribution block provides an effective solution for splicing cables or splitting primary power into secondary circuits.

• Finger-safe design enhances installation safety.
• Modular construction allows for flexible configuration.
• Quick installation with snap-on DIN rail mounting.

Product Highlights

The Mersen FSPDB3C block features a compact design to save space while providing reliable electrical connections.

Product Information

Standard Information

• Brand: Mersen
• MPN: FSPDB3C

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 310 A
• Number of Poles: 1
• Primary Connections/Pole: 1
• Secondary Connection/Pole: 8
• Wire Size Compatible: 14 to 2/0 AWG, 6 AWG to 350 kcmil, 14 to 8 AWG
• Short Circuit Current Rating: 100 kA
• Dimensions: 3.97 in H x 2.53 in W x 2.53 in D
• Country of Origin: Mexico
