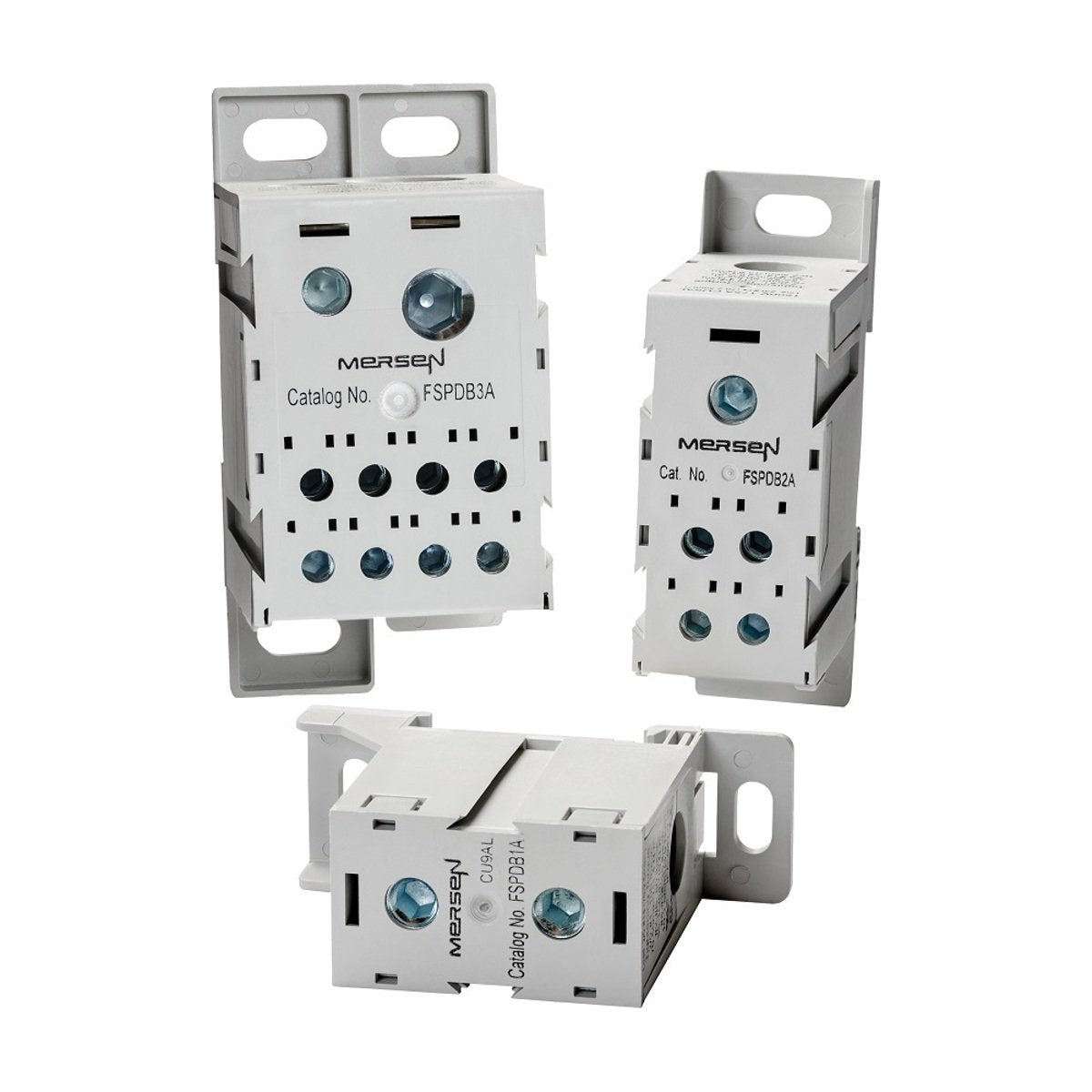

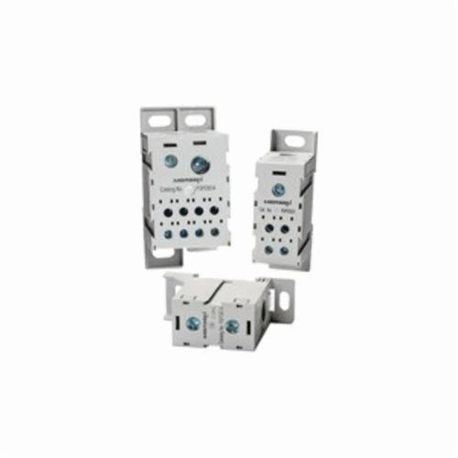

Mersen FSPDB3A Finger Safe Power Distribution Block 600 VAC 310 A 1 Pole 14 to 2/0 AWG 6 AWG to 350 kcmil

Product Description

The Mersen FSPDB3A is a finger-safe power distribution block with a voltage rating of six hundred volts AC and an amperage rating of three hundred ten amps. Designed with safety in mind, this product provides an IP20 level of protection, ensuring that live parts cannot be touched by fingers. The installation process is straightforward, as the distribution block easily snaps onto thirty-five millimeter DIN rail for quick setup. Its modular design accommodates multiple pole configurations, making it suitable for various applications including splicing cables and splitting primary power into secondary circuits.

• Finger-safe protection eliminates the need for additional covers.
• Modular design supports up to eight secondary connections per pole.
• Compatible with wire sizes from fourteen to two/ot AWG and six AWG to three hundred fifty kcmil.

Product Highlights

The FSPDB3A serves as a reliable junction point for electrical systems, allowing for flexible installation in industrial or commercial settings. Its compact size minimizes the space required while maximizing functionality.

Product Information

Standard Information

• Brand: Mersen
• MPN: FSPDB3A

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 310 A
• Number of Poles: 1
• Primary Connections/Pole: 1
• Secondary Connection/Pole: 8
• Short Circuit Current Rating: 100 kA
• Wire Size: 14 to 2/0 AWG, 6 AWG to 350 kcmil
• Dimensions: 3.97 in H x 1.85 in W x 2.53 in D
• Material: Tin-Plated Aluminum
• Country of Origin: Mexico
• Mounting: DIN Rail
