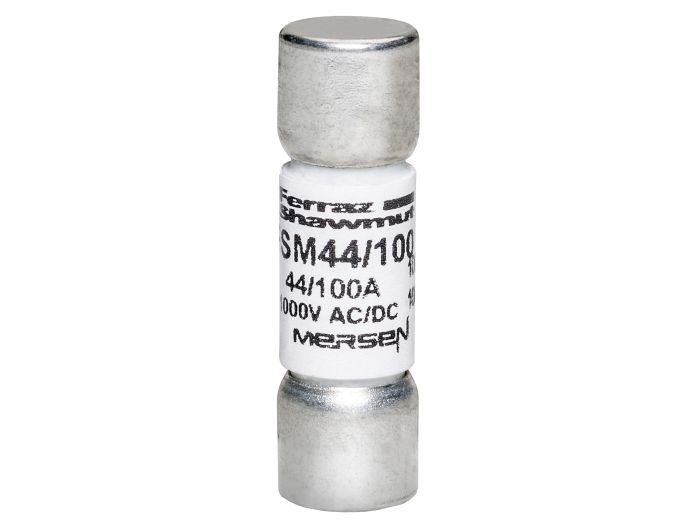

Mersen FSM44/100 FSM Series Fuse 0.44A

Product Description

The Mersen FSM44/100 is a 1000 VAC/DC fuse designed to protect both analog and digital multi-meters. These current limiting, fast-acting midget fuses meet industry multi-meter requirements. The glass melamine body and plated terminals provide reliability and performance for power electronics metering and controls.

• 1000 VAC/DC for full range protection
• 100% current rated for continuous current-carrying capability
• Glass melamine body and plated terminals provide superior reliability and performance

Product Highlights

The Mersen FSM series fuse is ideal for protecting multi-meters, with a fast-acting design and a 20kA interrupt rating.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: FSM44/100
• Country of Origin: Mexico

Technical Specifications

• Series: FSM
• Element: Single
• Material: Glass Melamine
• Body Size: 0.406 in Dia x 1.375 in L
• Terminal Type: Ferrule
• Voltage Rating: 1000 VAC/VDC
• Amperage Rating: 0.44 A
• Interrupt Rating: 20 kA
• Application: Multi-meters
• Manufacturer: Mersen
• Brand: Mersen
• Country of Origin: Mexico
• Made in USA: No
• Mounting: Clip
• Standard: UL Recognized component File E60314
• Item Type: Midget Fuses
• Characteristics: Fast Acting
• Diameter: 0.406 Inch
• Length: 1.375 Inch
• Approval: UL
• AC Voltage Rating: 1000V AC
• DC Voltage Rating: 1000V DC
• Connection Material: Tin-Plated Copper
• Fuse Voltage Rating: 1000V
• Class: Midget
• Speed: Fast Acting
• Length Overall: 1.375 in.
• Type: Multi-Meter Fuse
• Voltage: 1000V AC / 1000V DC
• Connection: Ferrule
• Construction: Melamine Tube
• Manufacturer Part Number: FSM44/100
• Family Series: Mersen Fuses
• Fuse Type: Midget
• AC Voltage: 1,000 VAC
• Ampere: 0.44A
• Voltage rating: 1000V
• Speed/Characteristic: Fast-Acting
• Connection Type: Ferrule
• Body Material: GMG
• Fuse Size: 1-1/2 in L x 0.41 in D
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product Weight: 0.016 lb
