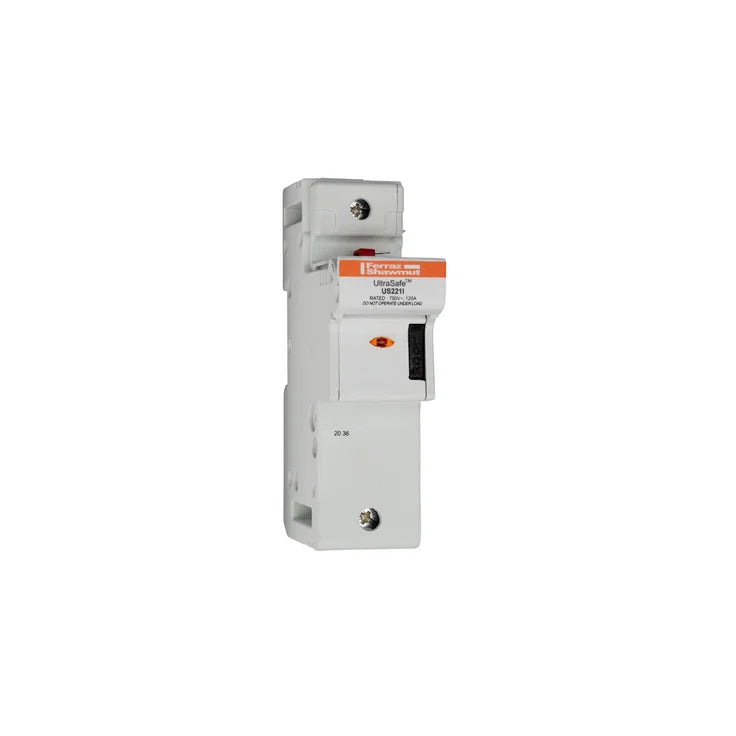

Mersen F331159 Fuse Holder UltraSafe 800VAC 1000VDC 1-Pole

Product Description

The MERSEN F331159 is an innovative UltraSafe™ fuse holder. This modular fuse holder is finger-safe under IEC standards to an IP20 grade of protection. It is available in 1, 2, 3, or 4 poles, with or without a visual blown fuse indicator, and in UL + IEC versions. Multi-pole units can also be field assembled.

• Finger-safe under IEC standards to an IP20 grade of protection
• Available with or without visual blown fuse indicator
• Made of tough and durable thermoplastic or thermoset material

Product Highlights

The MERSEN F331159 fuse holder is designed for the protection of motors, transformers, low voltage distribution, and control circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: F331159
• Country of Origin: Import

Technical Specifications

• Item number: F331159
• Catalogue No: US221I
• Description: Fuse Holder UltraSafe 800VAC 1000VDC UL Fuse size 22x58 1-Pole Visual Indicator Pressure Plate IP20
• EAN/UPC Code: 0782001311261
• Rated voltage AC UL: 800 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50 ... 60 Hz
• Rated voltage AC IEC: 690 V
• Rated voltage DC IEC: 690 V
• Ampere Rating: 125 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Current Rating (SCCR): 100 kA
• Fuse Size: 0.866" Dia x 2.283" L (22mm x 58mm)
• Design Details: single pole
• Indication System: Yes
• Indication System Type: Visual Indicator
• Number of Poles: 1-Pole
• Wiring range: 1/0 - #14
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Clip
• Fuse Installation Method: Clip-in
• Torque Rating: 35.403 lb-in
• Max Fuse Rating: 125 A
• Rated Impulse Withstand Voltage: 8 kV
• Rated Insulation Voltage: 750 V
• Installation Mounting: DIN rail acc. EN 60715
• Product Width: 1.38 in
• Product Length: 3.01 in
• Product Height: 5.02 in
• Product group: Fuse Holders
• Body/Insulating Material: Polyamide
• Product Weight: 0.478 lb
• Conventional Free Air thermal Current With Fuse-Links Ith: 125 A
• Manufacturer: Mersen
• Fuse Amperage Rating: 125 Amp
• Component: Fuse Holder
• Mounting: DIN Rail
• Fuse Voltage Rating: 800 Volt
• Series: UltraSafe US22
• Category: Circuit Protection
• Fuseholders: Fuseholders
• For Use With/Related Products: 22mm x 58mm
• Mfr: Mersen USA Newburyport-MA L.L.C.
• Fuse Type: Cartridge
• Packaging: Bulk
• Number of Circuits: 1
• Part Status: Active
• Voltage: 750V
• Orientation: Vertical
• Termination Style: Screw Terminal, Pressure Plate
• Current Rating (Amps): 125 A
• Type: Modular
• Voltage Rating: 800 VAC/1000 VDC
• Material: Thermoplastic/Thermoset
• Dimensions: 3.01 in L x 1.38 in W x 5.02 in H
• Application: For protection of motors, transformers, low voltage distribution, control circuits, Non-load operation
• Holder Type: Modular Fuse Holder
• Amps: 125A
• Poles: 1P
• Terminal Type: Clip
• AWG Load: 14 to 1/0 AWG
• Listings: UL-4248 File No. E52283, Guide No. IZLT2, CSA C22.2, Class 6225 File No. 32169, IEC-60269-2, 60947-3
