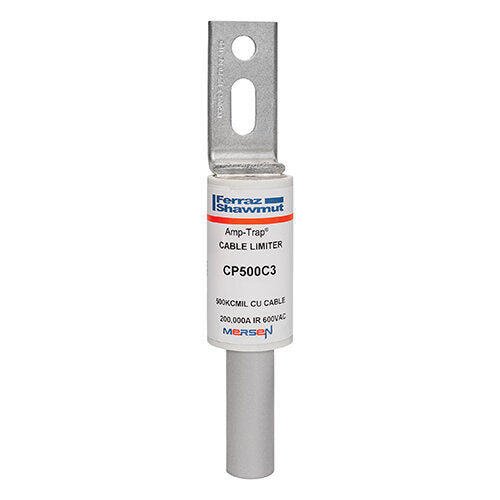

Mersen CP500C3 Amp-Trap Fuse 600VAC (10 in x 1.88 in)

Product Description

Mersen CP500C3 is a current-limiting Amp-Trap cable protector fuse rated for 600 VAC and designed for 500 MCM cables. It is intended for service entrance and distribution runs and provides a 200 kA interrupting rating while carrying low cable overloads handled by standard protective devices. The device mounts blade-to-cable with bolt or crimp connections and features a fiberglass insulating body for dimensional stability.

• 600 VAC rating with 200 kA interrupting capacity; current-limiting design for fault isolation
• Blade-to-cable connection with bolt mounting and crimp terminals; crimp terminals for aluminum include oxide inhibitor
• Fiberglass insulating body for dimensional stability; dimensions approximately 10 in length x 1.88 in diameter

Product Highlights

Current-limiting 600 VAC cable protector for 500 MCM cables with 200 kA interrupting rating and bolt/crimp blade-to-cable connections.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: CP500C3
• Country of Origin: Mexico

Technical Specifications

• Brand: Mersen
• Manufacturer Part Number: CP500C3
• Product Type: Cable protector / fuse (Amp-Trap)
• Voltage Rating: 600 VAC
• Interrupting Rating: 200 kA
• Rated Cable Size: 500 MCM
• Current Limiting: Yes
• Connection Type: Blade to cable
• Mounting Type: Bolt and crimp
• Crimp Terminal Feature: Oxide inhibitor on crimp terminals for aluminum cable
• Body / Insulating Material: Fiberglass
• Dimensions: 10 in length x 1.88 in diameter
• Application: Service entrance and distribution runs
• UL Listing: UL listed to File E305297
• Connection / Contact Material: Tin-plated copper and tin-plated brass (contacts)
• Country of Origin: Mexico
• UPC: 782001931643
• GTIN: 00782001931643
• Item Weight: 2.44 lb
