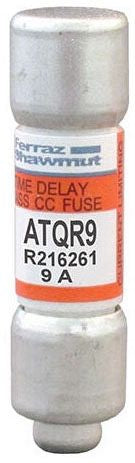

Mersen ATQR9 Class CC Time-Delay Fuse 9A 600VAC 13/32 in Dia x 1-1/2 in L

Product Description

The MERSEN ATQR9 is a current limiting, low voltage, North American time-delay fuse designed for superior branch circuit protection. This 9A, 600VAC Class CC fuse features a dual element and a fiberglass cylindrical body with ferrule terminals for clip mounting. It is ideally suited for applications with high inrush currents, such as control transformers, solenoids, inductive loads, lighting, and general-purpose loads, preventing nuisance openings.

• Time delay for control transformer inrush loads without nuisance opening
• Highly current limiting for low peak let through current
• Rejection style design prevents replacement errors

Product Highlights

Superior protection for branch circuits with time-delay characteristics for high inrush currents.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: ATQR9
• Country of Origin: Mexico

Technical Specifications

• Type: Current Limiting Low Voltage North American Time Delay
• Series: ATQR
• Class: CC
• Element: Dual
• Body Material: Fiberglass
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 600 VAC, 300 VDC
• Amperage Rating: 9 A
• Interrupt Rating: 200 kA at 600 VAC, 100 kA at 300 VDC
• Rejection Type: Rejection
• Indication Type: Non-Indicating
• Standards: CSA C22.2 No. 248.4, DC Listed to UL 248, RoHS Compliant, UL 248-4 File No. E2137
• Application: Control Transformer, Solenoid, Inductive Load, Lighting, Heater and General Purpose Load
• Fuse Holder Code: D/W
• Compatible Fuse Block Series: USCC, USFMCC
