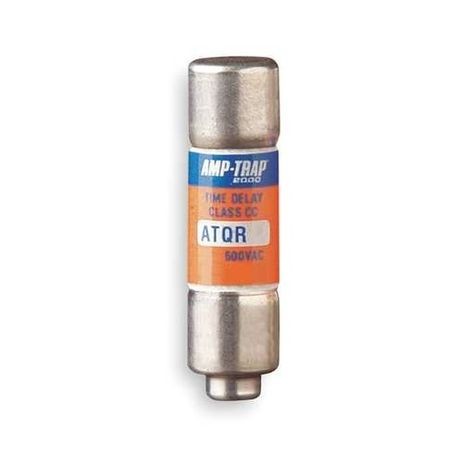

Mersen ATQR8 Fuse Class CC Time-Delay 600VAC 300VDC 8A

Product Description

The Mersen ATQR8 is a reliable Class CC time-delay fuse optimized for control transformers, solenoids, inductive loads, and standard electrical applications. This fuse is designed to handle 600VAC and 300VDC with a current rating of 8A, ensuring protection in various settings.

• Optimal for high inrush currents preventing nuisance tripping
• Highly current-limiting design for superior circuit protection
• Features a visible orange label for easy identification and quick replacement

Product Highlights

Known for its durability and reliability, the Mersen ATQR8 boasts a fiberglass body and high-grade silica filler which aid in fast arc quenching and improved current limitation. Its unique time-delay feature allows it to safely handle transient surges and spikes.

Product Information

Standard Information

• UPC: 782001906641
• GTIN: 00782001906641

Technical Specifications

• Mounting Type: Clip
• Connection Type: Ferrule
• Voltage: 600 VAC
• Amperage: 8 A
• Interrupt Rating: 200 KA
• Body Size: 1.5 inches x 0.41 inches
• Standard & Approvals: UL 248-4, CSA C22.2 No. 248.4
• Item Type: Class CC
