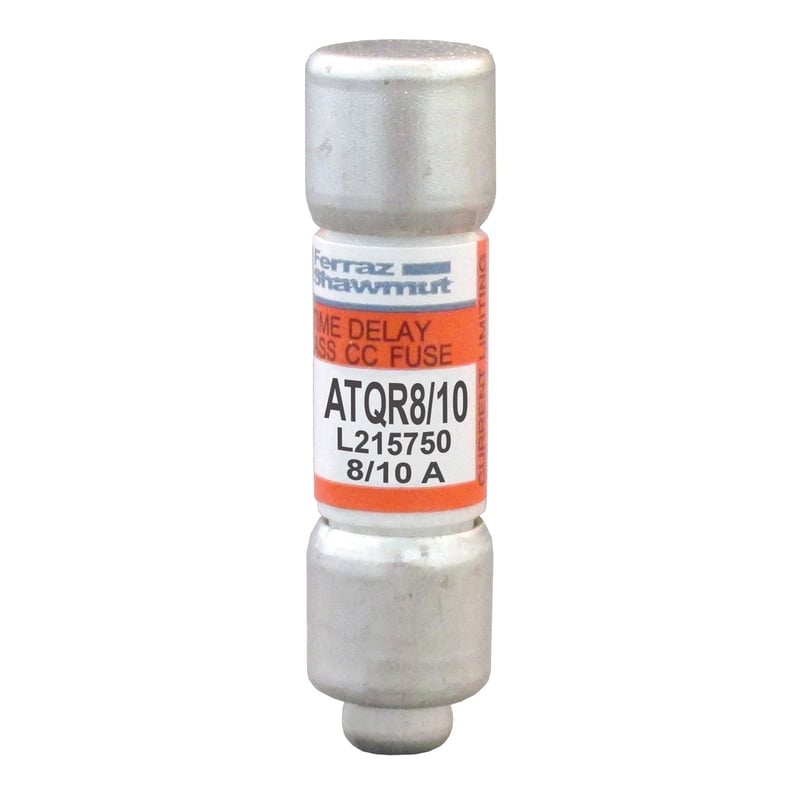

Mersen ATQR8/10 .8 Amp, 600 Volt, Class CC, Time Delay Midget Fuse

Product Description

The Mersen ATQR8/10 is a Class CC time-delay midget fuse rated for eight hundred milliamps and can handle up to six hundred volts AC and three hundred volts DC. This fuse is designed for applications that require high inrush current protection, such as control transformers and solenoids.

• Rated current: 0.8 Amps
• Time delay to prevent nuisance opening
• Current limiting characteristics for safety

Product Highlights

Engineered for reliable circuit protection while minimizing the risk of interruptions in critical applications.

Product Information

Standard Information

• Brand: Mersen
• MPN: ATQR8/10

Technical Specifications

• Voltage Rating: 600V
• Amperage Rating: 0.8 A
• Interrupt Rating: 200
• Connection Type: Ferrule
• Standard: UL listed to standard 248-4
• Sub Brand: Amp-Trap 2000
• Box Quantity: 10
• Application: Ideal for control transformers, inductive loads, and general-purpose electrical circuits
